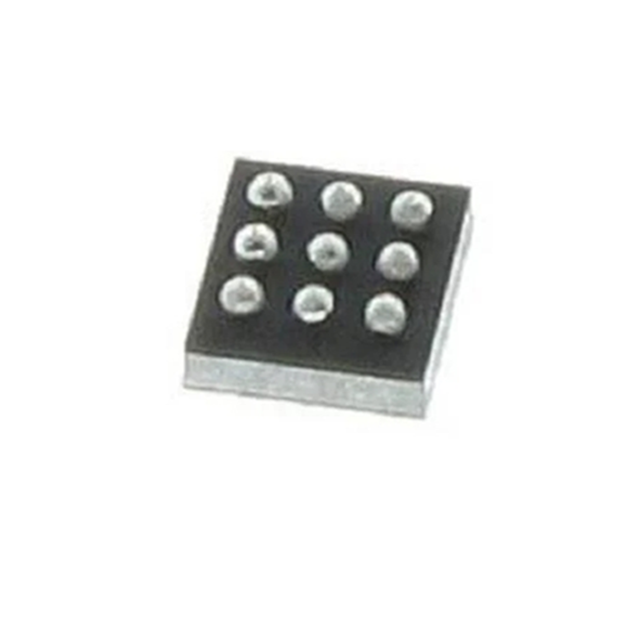

For picture reference, please see the specifications
< >

Commodity Model:MAX20331EWL

Trade Name:Professional Power Management (PMIC)

Brand:Maxim

Particular Year:25+

Package:WLP-9

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX20331EWL
Package
WLP-9
Describe
Professional Power Management (PMIC) IC overvoltage protector CTRL 9WLP

Product Description

The MAX20331EWL overvoltage protector (OVP) is a 3.5mm audio line protector designed to protect audio codecs and electronic components of portable devices. The MAX20331EWL can install a high-voltage protection OVP between the 3.5mm jack and the audio path electronic components to protect the device from damage caused by high-voltage conditions up to ±40V. The MAX20331EWL OVP adopts space-saving 9 solder balls, 0.4mm pitch and 1.23mm x 1.23mm wafer-level package (WLP). The extended operating temperature range of these OVPs is from -40°C to 85°C. Typical applications include smart phones and tablets.


Main features

Protect equipment from damage caused by high-voltage conditions

±40V tolerance input

Multiple OVP thresholds enable flexible design

+ / - 3.45 V

Low THD+N can maintain audio clarity

Small size that can save circuit board space

1.23mm x 1.23mm, 3 x 3 array, 9 solder balls, 0.4mm pitch WLP package


Basic parameters

Product: MAX20331EWL

Working power supply voltage range

1.6V to 5.5V

A continuous current of 0.75A enters the device

Power supply current: 85µA

Peak current: 2A

Continuous power consumption: 952.8mW

Operating temperature range: -40°C to 85°C
