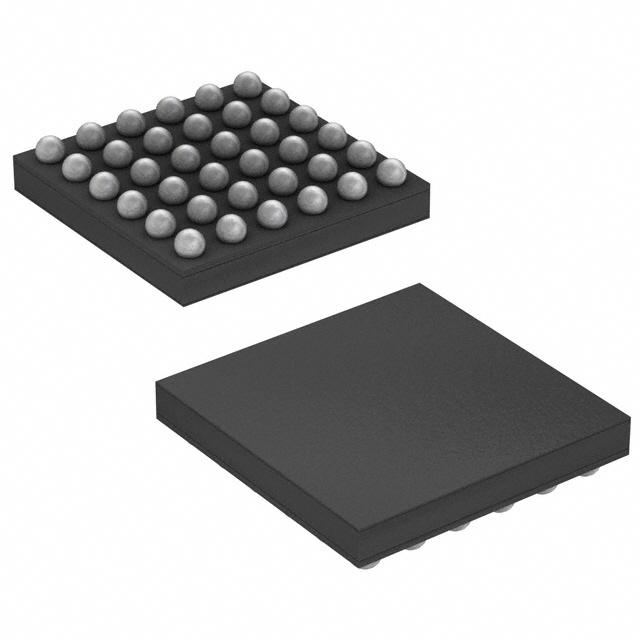

For picture reference, please see the specifications
< >

Commodity Model:MAX8521EWX

Trade Name:Professional Power Management (PMIC)

Brand:Maxim

Particular Year:25+

Package:WLP-36

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX8521EWX
Package
WLP-36
Describe
Professional Power Management (PMIC) IC DRVR PWR TEC 36-WLP

Product Description

The MAX8521EWX is a professional power management (PMIC) designed to drive thermoelectric coolers (TEC) in space-constrained fiber optic modules. This device provides ±1.5A output current and controls the TEC current to eliminate harmful current surges. The on-chip FET reduces the number of external components, and the high switching frequency decreases the size of the external components.


The MAX8521EWX features precise, independently adjustable heating current limits and cooling current limits, as well as a maximum TEC voltage limit, to enhance the reliability of the optical module. There is one analog output signal to monitor the TEC current. The unique ripple cancellation technology helps reduce noise. In addition, the MAX8521EWX features a space-saving 36-ball WLP (3mm x 3mm) package with a switching frequency that can be selected from either 500kHz or 1MHz pins.

Main features

A circuit area of 0.31in²

Low cross-section design

On-chip power MOSFET

High-efficiency switching mode

Low-noise ripple cancellation technology

Direct current control prevents TEC current surges

5% adjustable heating/cooling current limit

TEC voltage limit with 2% accuracy

When the output current is low, there is no dead zone or oscillation

ITEC monitors the TEC current

Voltage reference with 1% accuracy

Switching frequency up to 1MHz

Synchronous operation (MAX8521


Application scenarios

Automatic Test Equipment (ATE

Biotechnology laboratory equipment

Optical fiber optical network equipment

Fiber laser module

SFF/SFP module
