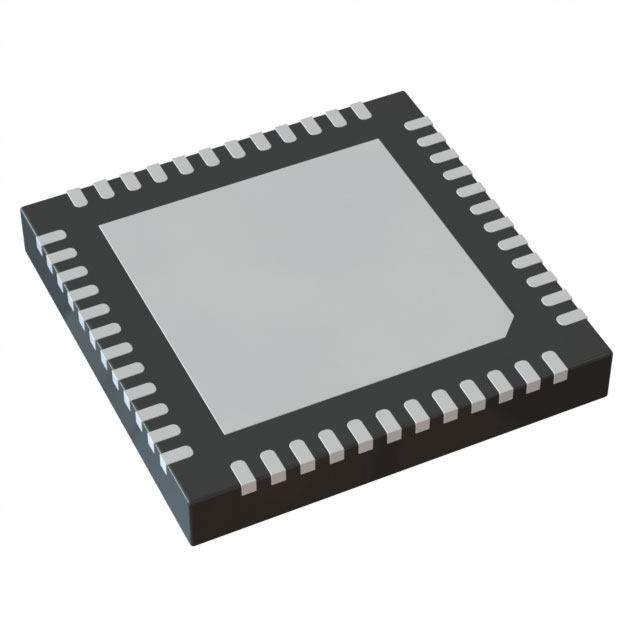

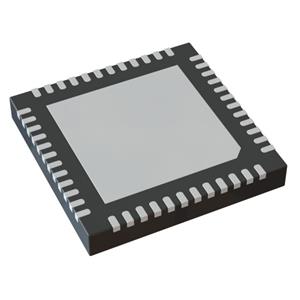

For picture reference, please see the specifications
< >

Commodity Model:MAX16927AGTM

Trade Name:Professional Power Management (PMIC)

Brand:Maxim

Particular Year:25+

Package:TQFN-48

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX16927AGTM
Package
TQFN-48
Describe
PMIC - Highly Integrated TFT-LCD power converter

Product Description

The MAX16927AGTM is a highly integrated TFT-LCD power converter for automotive applications. The MAX16927AGTM integrates one buck converter, one boost converter, one cuk converter, two gate voltage controllers and two VCOM buffers, one of which supports negative voltage output. The MAX16927AGTM operates within the voltage range of 4.5V to 16V and is highly suitable for powering TFT-Lcds in automotive applications. In addition, the MAX16927AGTM can also operate on a power supply ranging from 3V to 5.5V.


Its main characteristics

Operating voltage range: 4.5V to 16V (IN3) or 3V to 5.5V (INA)

The 16V input and 2A buck converter are used as the TFT bias power supply and/or to provide 3.3V power for other peripheral circuits

Flexible configuration, it can provide one high-power positive voltage output (18V/200mA) or one positive voltage output (18V/100mA) and one negative voltage output (-12V/100mA)

One positive voltage gate voltage converter

One negative voltage gate voltage controller

Dac-controlled VCOM buffer with ±1V bias

High-frequency work

2.1MHz (buck converter)

1.2MHz (boost and cuk converters)

The converter can operate in opposite phases to reduce EMI.

The external control spread spectrum switch operates for the boost and cuk converters

Flexible timing control is provided in both single-machine mode and SPI control mode

Truly turn off the boost converter

Low current turn-off mode (< 10μA)

SPI control interface

Internal soft start

High-temperature shutdown

Operating temperature range: -40°C to +105°C

Certified by AEC-Q100


Target application

Automobile center display

Automobile dashboard

Automobile navigation system
