The MAX6078AMWT25 high-precision voltage reference family features low drift and low noise, with a maximum supply current of just 15μA. Low-frequency noise is less than 12μVsub>PP (2.5V output voltage option), and the temperature coefficient of the output voltage is less than 10ppm/°C.

The reference output can sink or source up to 3mA of load current, with an initial accuracy of 0.04% at the highest grade. The low drift and low noise specifications enhance system accuracy, making it an ideal choice for high-precision industrial applications. The noise suppression (NR) input pin allows connection of an external capacitor to reduce broadband noise. The available output voltages include 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V.

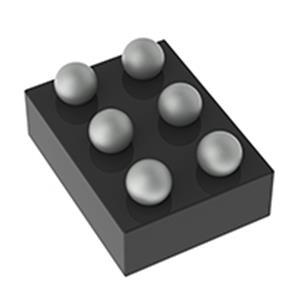

The MAX6078AMWT25 is housed in a small, 6-ball WLP package, making it ideal for systems with limited board space. It operates on an input voltage range of 2.3V to 5.5V and functions within an extended temperature range of -55°C to +125°C.

Advantages and Features (MAX6078AMWT25)

Initial accuracy: ±0.04%

Temperature drift: 10ppm/°C (maximum)

Noise: 12µVP-P (0.1Hz to 10Hz) at 2.5V

Supply current: 15µA

Long-term drift: 16 ppm (typical, 4000 hours)

3 mA source/sink load current

Filtering options to reduce high-frequency noise

100 mV dropout voltage

1.5 mm x 1.3 mm (0.5 mm pitch), 6-ball WLP and 2 mm x 3 mm

Product parameters (MAX6078AMWT25)

Output voltage:    2.5 V

Initial accuracy:    0.04%

Temperature coefficient:    10 ppm/°C

Series VREF—input voltage—maximum:    5.5 V

Shunt current—maximum:    3 mA

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +125°C

Operating Supply Current:    15 uA

Applications (MAX6078AMWT25)

High-precision industrial and process control

High-precision ADC and DAC

Portable and handheld systems

Precision instruments
