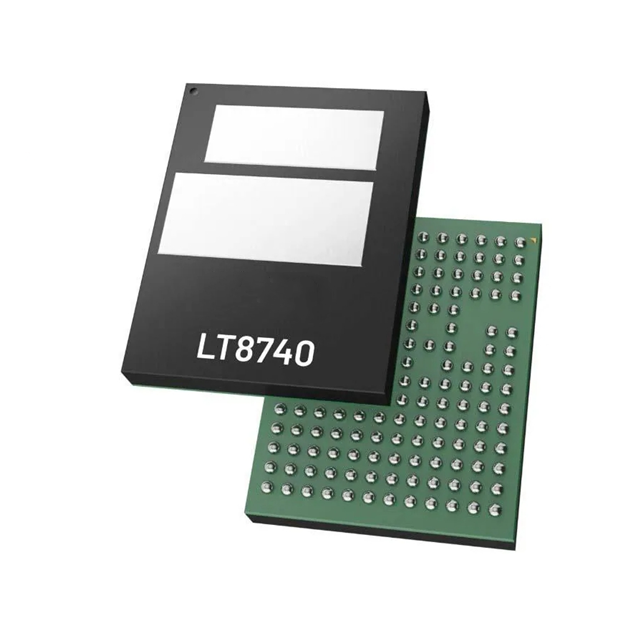

For picture reference, please see the specifications
< >

Commodity Model:LT8740AY-2.25

Trade Name:Professional Power Management (PMIC)

Brand:ADI

Particular Year:25+

Package:BGA-166

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT8740AY-2.25
Package
BGA-166
Describe
Efficient ±2A programmable kit power supply (DPS) with 16-bit Settings

Product Description

The LT8740AY-2.25 is a dual-channel programmable device power supply (DPS) with extremely high efficiency, integration and performance. The LT8740AY-2.25 consists of two switching power supplies, each of which can provide a current of up to ±2A within an output voltage range of 30V. Integrated current detection resistor, supporting precise output current measurement within the range of ±5μA to ±2A. The LT8740AY-2.25 also includes a linear drive stage that generates a switch-free ripple output drive of up to ±25mA. By paralleling or combining multiple DPS channels and/or kits, an output current exceeding ±2A can be achieved.


The LT8740AY-2.25 has the following main features:

Programmable FV, FI, MI, MV and FNMV functions

Integrated current detection resistor, with A measurement range of ±5μA to ±2A

High-efficiency switching power supply driver

Integrated power switch

Silent Switcher® architecture

The forward voltage range is 30V and the maximum driving current is ±2A

Integrated digital PID FV and FI control loop

It can be combined to provide a higher current

Kelvin voltage monitoring and alarm

Current and voltage clamping

SPI or two-wire serial interface

Support increasing the output current

10mm x 12.75mm 166-ball BGA


Application scope

Automatic Test Equipment (ATE

Equipment power supply
