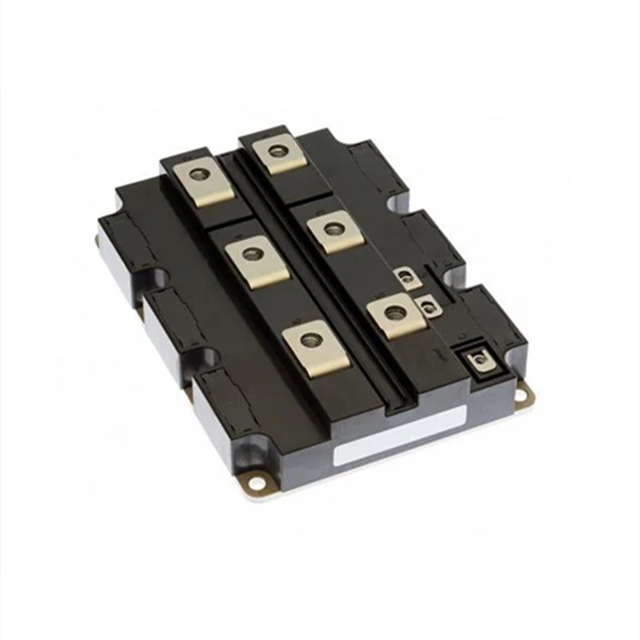

The CM1800HG-66X is a high-voltage insulated gate bipolar transistor (HVIGBT) module, mainly used in power electronic equipment systems that require high withstand voltage and large current, such as rail transit vehicles and large industrial machinery. Its advantages and technical specifications are as follows:

Product advantages

The CM1800HG-66X reduces power consumption by being equipped with the 7th generation IGBT and RFC diode.

2. Under the condition that the withstand voltage and rated current are the same as those of traditional products, the external dimensions of CM1800HG-66X are reduced by approximately 33%, which helps to reduce the volume of the inverter.

3. Optimize the internal structure of the package, enhance heat dissipation, moisture resistance, flame retardancy, and extend the product's lifespan.

Technical Specification

The main specifications of the CM1800HG-66X module include:

Configuration: Single

The maximum collector-emitter voltage VCEO: 3.3 kV

Collector-emitter saturation voltage: 2 V

Continuous collector current at 25 C: 1.8 kA

Gate-emitter leakage current: 500 nA

Pd- Power dissipation: 17.8 kW

Packaging/Box: 140 mm x 190 mm

Minimum operating temperature: -50 ° C

Maximum operating temperature: + 150 ° C

Maximum gate/emitter voltage: 20 V

Installation style: Screw Mount

Product type: IGBT Modules
