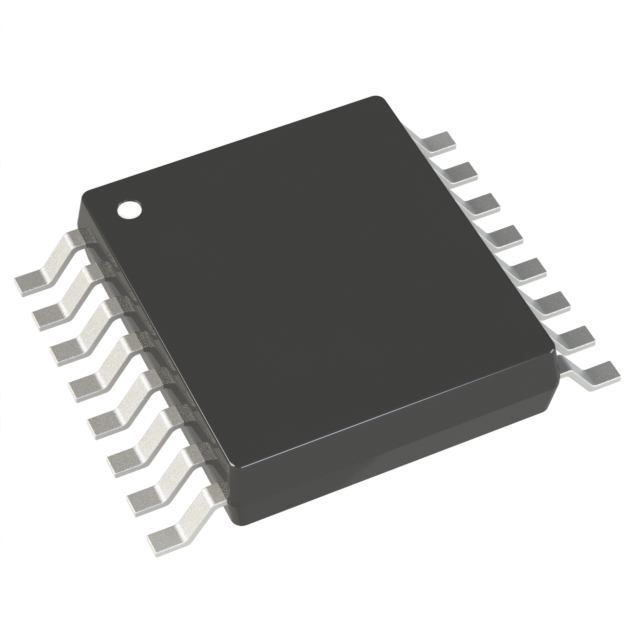

AD5542AARUZ: 16-bit nanoDAC™ Digital-to-Analogue Converter (DAC), TSSOP-16

Model: AD5542AARUZ

Package: TSSOP-16

Type: Digital-to-Analogue Converter (DAC)

The AD5542AARUZ is a single-channel, 16-bit, serial-input, unbuffered-voltage-output digital-to-analog converter (DAC) that operates from a single 2.7 V to 5.5 V power supply.The DAC outputs have a 0 V to VREF range, are guaranteed to be monotonic, provide 1 LSB INL accuracy (16-bit) with no adjustments required, and are rated for temperatures from -40°C to +85°C. 85°C.

The AD5542AARUZ provides unbuffered outputs with 1 μs build-up time and low misalignment error, making it ideal for high-speed open-loop control applications.

The AD5542AARUZ features a bipolar mode of operation that produces ±VREF output swing. Both also contain Kelvin detection connections for the reference voltage to the analogue ground pin to reduce layout sensitivity.

AD5542AARUZ Product Features:

2/16-bit resolution

1LSB INL

Noise spectral density: 11.8 nV/√Hz

Build-up time: 1 μs

Burr energy: 1.1 nV-s

Temperature drift: 0.05 ppm/°C

5 kV HBM ESD rating
