The LT8602EUJ is a four-channel, monolithic synchronous buck regulator with programmable power-on reset ‌. All regulators are synchronized to a single oscillator, with a frequency range of 250kHz to 2.2MHz. Under light load conditions, the LT8602EUJ can be configured to operate in low-power burst mode or pulse jump mode. When all four regulators are in operation, the quiescent current is 30μA. The LT8602EUJ supports a wide input voltage range. The high-voltage channel supports an input voltage of 3V to 42V, and the output current can reach 2.5A. Low voltage channel supports input voltage from 2.6V to 5.5V and output current up to 1.8A with an efficiency of 94%‌.

The main features of LT8602EUJ include:

The flexible power supply system can provide four outputs and has a wide input range

Two high-voltage synchronous step-down voltage regulators:

Input voltage range: 3V to 42V

The output current can reach up to 2.5A and 1.5A at most

High efficiency: Up to 93% at most

Two low-voltage synchronous step-down voltage regulators:

Input voltage range: 2.6V to 5.5V

The output current can reach up to 1.8A at most, and the efficiency can reach 94%

Programmable power-on reset

Good power indication

Switching frequencies from 250kHz to 2.2MHz that can be programmed and synchronized using resistors

Low Ripple Burst Mode® working mode:

30μA IQ (at 12VIN)

Output ripple < 15mV

A two-phase clock can reduce the input current ripple

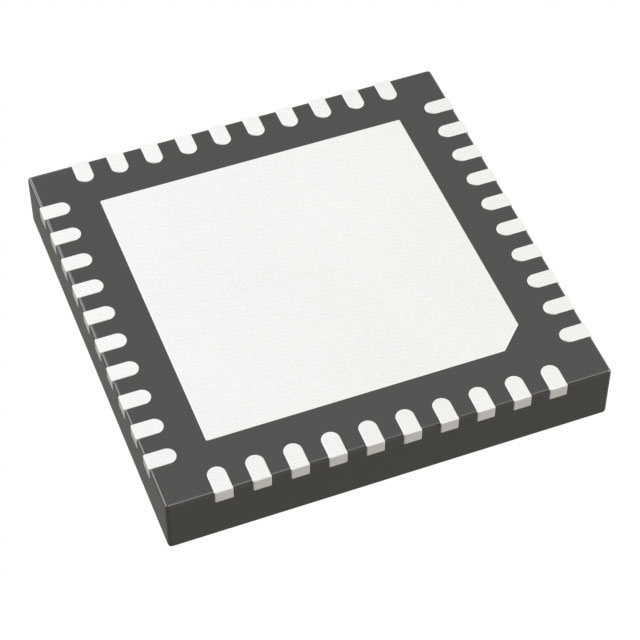

It offers a 40-pin QFN (6mm × 6mm) package with enhanced heat dissipation

Passed the EC-Q100 automotive application certification

Application scenarios

The LT8602EUJ is suitable for application scenarios that require multiple independent power outputs, such as industrial control, communication equipment, instruments and meters, etc. Its high power management performance makes it particularly suitable for systems that require low power consumption and high reliability ‌.
