The LTC3623IUDD is a high-efficiency, monolithic, synchronous buck regulator that uses a single external resistor to set the output voltage. It features an internally generated 50μA accurate current source on the ISET pin, enabling users to set an output voltage within a range of 0V to VIN – 0.5V.

LTC3623IUDD Specifications:

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Minimum): 1.5V

Voltage - Input (Maximum): 15V

Voltage - Output (Minimum/Fixed): 0V

Voltage - Output (Maximum): 14.5V

Current - Output: 5A

Frequency - Switching: 400kHz to 4MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 125°C (TJ)

Mounting type: Surface mount

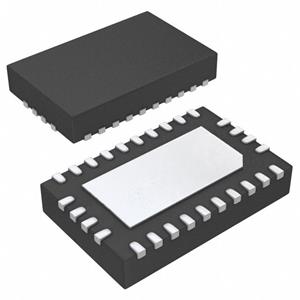

Package/Case: 24-WFQFN bare pad

Supplier device package: 24-QFN (3x5)

The operating frequency of the LTC3623IUDD can be set within the range of 400kHz to 4MHz using an external RT resistor. Higher switching frequencies allow the use of smaller surface mount inductors, while lower frequencies enable higher power efficiency.

LTC3623IUDD Applications:

Tracking power supplies or DDR memory power supplies

ASIC substrate bias

Point-of-load (POL) power supplies

Portable instruments, battery-powered devices

Thermal electric cooler (TEC) systems
