LTC3623EUDD: 15V, Rail-to-Rail Synchronous Buck Regulator, QFN-24

The LTC3623EUDD is a high-efficiency, monolithic, synchronous buck regulator that uses a single external resistor to set the output voltage. It features an internally generated 50μA accurate current source on the ISET pin, enabling users to set an output voltage within a range of 0V to VIN – 0.5V.

The operating frequency of the LTC3623EUDD can be set using an external RT resistor within a range of 400kHz to 4MHz. A higher switching frequency allows the use of smaller surface-mount inductors, while a lower frequency achieves higher power efficiency.

LTC3623EUDD Product Features:

VOUT set using a single resistor: 0V to VIN – 0.5V

Silent Switcher® architecture

IISET accuracy: ±1%

Tight VOUT regulation across the entire VOUT range

Output current monitor accuracy: ±5%

Programmable wire drop compensation

Easy to parallel for higher current and thermal dissipation

Input power supply voltage regulation loop

High efficiency: up to 96%

Output current: ±5A

Integrated N-channel power MOSFET (60mΩ upper MOSFET and 30mΩ lower MOSFET)

Adjustable switching frequency: 400kHz to 4MHz

VIN range: 4V to 15V

Current-mode operation for excellent voltage and load transient response

Shutdown mode draws <1μA of supply current

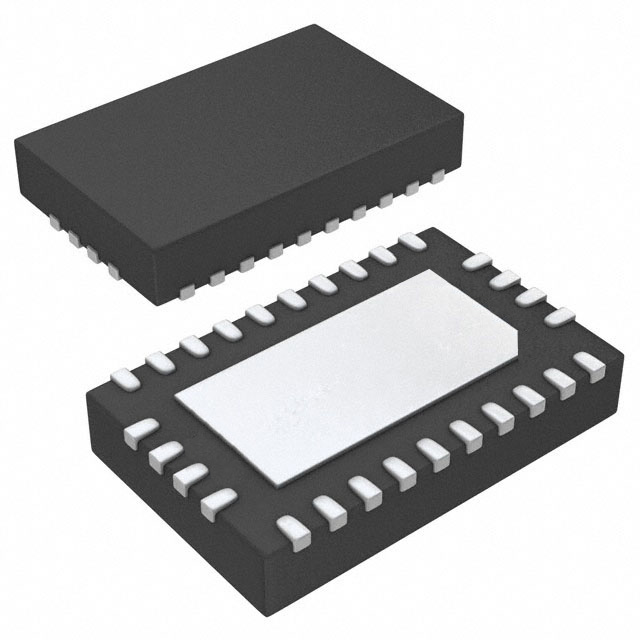

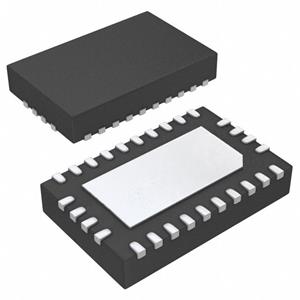

Flat 24-pin 3mm x 5mm QFN package

LTC3623EUDD Applications:

Tracking power supplies or DDR memory power supplies

ASIC substrate bias

Point-of-load (POL) power supplies

Portable instruments, battery-powered devices

Thermal electric cooler (TEC) systems
