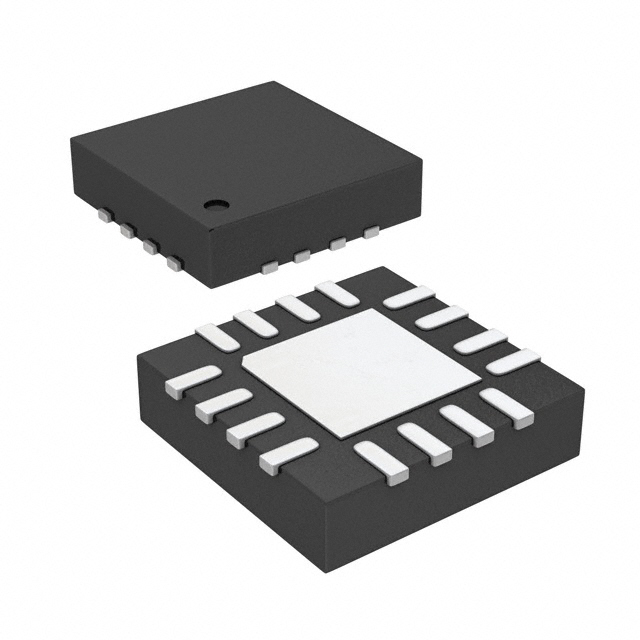

For picture reference, please see the specifications
< >

Commodity Model:LT8609SEV

Trade Name:Synchronous Step-Down Regulators

Brand:ADI

Particular Year:25+

Package:LQFN-16

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT8609SEV
Package
LQFN-16
Describe
42V, 2A / 3A peak synchronous buck regulator with 2.5μA quiescent current

Product Description

The LT8609SEV is a compact, high-efficiency, high-speed, synchronous, monolithic, buck-type switching regulator that consumes only 1.7μA of non-switching quiescent current. The LT8609SEV provides 2A of continuous current and 3A of peak load (< 1 second) to support applications such as GSM transceivers that require high transient loads.


Product Details:

Model: LT8609SEV

Package: LQFN-16

Type: Synchronous buck regulator

The LT8609SEV integrates upper and lower power switches along with all necessary circuitry to minimise the need for external components. Low ripple burst mode operation achieves high efficiency even at very low output currents while maintaining output ripple below 10mVP-P. The LT8609SEV is housed in a compact 16-pin 3mm x 3mm LQFN package.


LT8609SEV Specifications:

Series: Silent Switcher®2

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Minimum): 3V

Voltage - Input (Maximum): 42V

Voltage - Output (Minimum/Fixed): 0.782V

Voltage - Output (Maximum): 42V

Current - Output: 2A

Frequency - Switching: 200kHz to 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C to 125°C (TJ)

Mounting Type: Surface Mount

Package/Case: 16-TFQFN Bare Pad
