LTC3839EUH: Two-phase, single-output buck DC/DC controller, QFN-32

The LTC3839EUH is a two-phase, single-output, multi-phase (PolyPhase®) synchronous buck switch mode regulator controller designed to drive all N-channel power MOSFETs. The controlled on-time, valley current mode control architecture enables fast transient response and constant frequency switching action in steady-state operation, unaffected by VIN, VOUT, and load current. Its load release transient detection feature significantly suppresses overshoot under low output voltage conditions.

LTC3839EUH Product Features:

Wide VIN range: 4.5V to 38V, VOUT: 0.6V to 5.5V

Output voltage accuracy of ±0.67% over the entire temperature range, differential output voltage detection, allowing up to ±500mV line loss at remote ground

Controlled on-time, valley current mode control

Fast load transient response

Transient detection function (DTR) suppresses VOUT overshoot

Frequency programmable range from 200kHz to 2MHz, synchronisable to an external clock

tON(MIN) = 30ns, tOFF(MIN) = 90ns

Up to 12-phase operation

RSENSE or inductor DCR current sensing

Overvoltage protection and current limit foldback

Power good output voltage monitor

Output voltage tracking and adjustable soft start

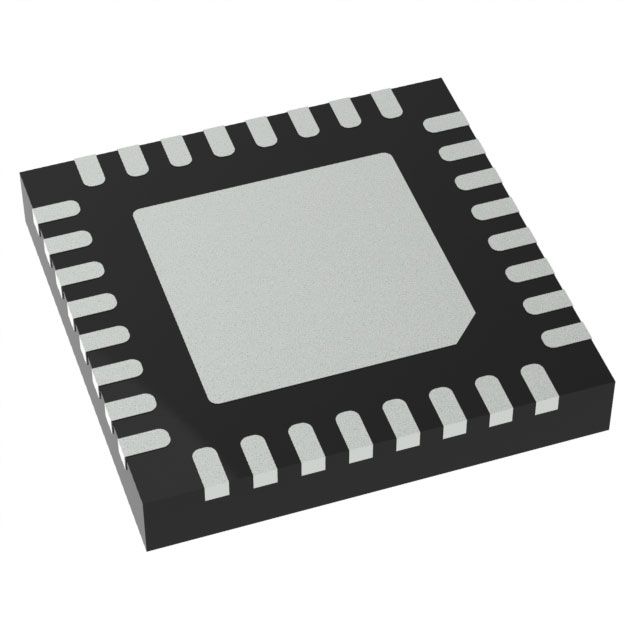

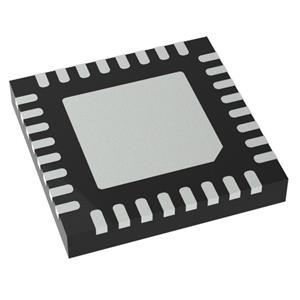

Thermally enhanced 32-pin (5mm x 5mm) QFN package

LTC3839EUH Applications:

Distributed power systems

Point-of-load converters

Computing systems

Data communication systems
