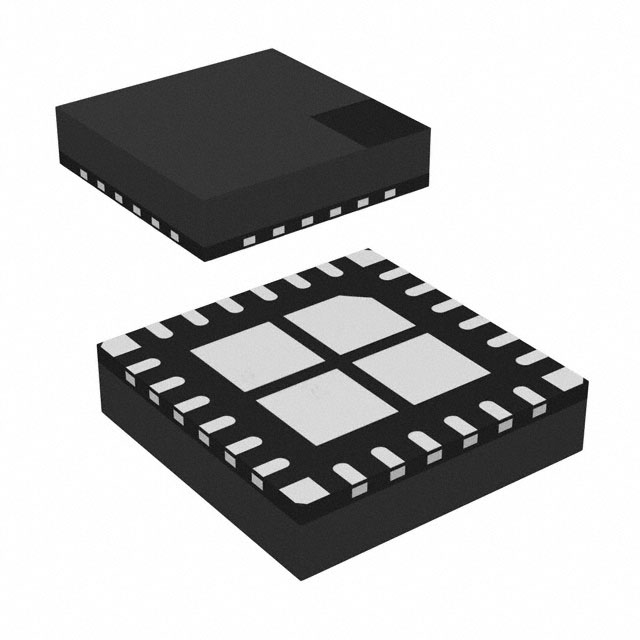

LT8643SAAV (Synchronous Buck Regulator) Silent Switcher®2 Architecture, 42V, 6A, with 2.5μA Quiescent Current.

The LT8643SAAV synchronous buck regulator employs a second-generation ultra-low-noise switching regulator architecture, significantly reducing EMI radiation while delivering high efficiency at high switching frequencies.

The LT8643SAAV features peak current-mode control with a minimum on-time of 30ns, enabling high step-down ratios even at high switching frequencies. The LT8643SAAV provides external compensation for current sharing and fast transient response performance at high switching frequencies.

Product Details:

Model: LT8643SAAV

Product Type: Switching Regulator

Mounting Style:    SMD/SMT

Package/Case:    QFN-24

Topology:    Buck

Output Current:    6 A

Number of Outputs:    1 Output

Input Voltage - Minimum:    3.4 V

Input Voltage - Maximum:    42 V

Quiescent Current:    230 uA

Switching Frequency:    200 kHz to 3 MHz

Minimum Operating Temperature:    -40 °C

Maximum Operating Temperature:    +125 °C

Input Voltage:    3.4 V to 42 V

Operating Power Supply Current:    750 nA

LT8643SAAV Applications:

Automotive and Industrial Power Supplies

General-Purpose Buck
