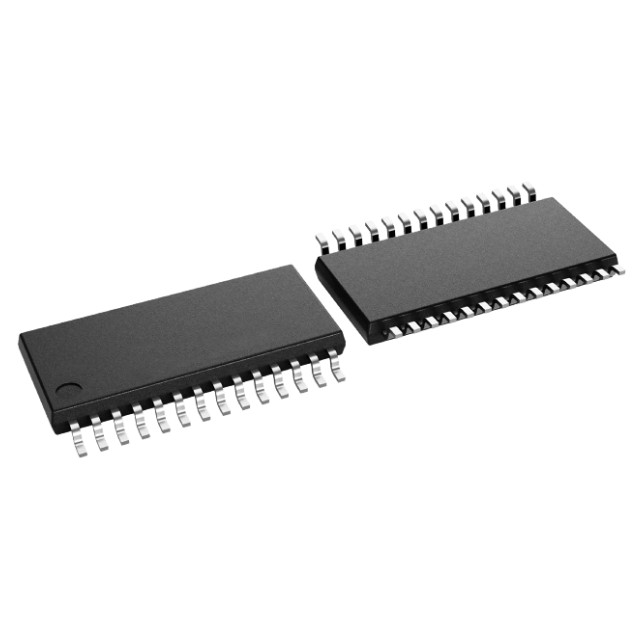

The ADS1248IPWR is a highly integrated precision 24-bit analog-to-digital converter (ADC). This device features an on-board, low-noise, programmable gain amplifier (PGA), a precise Δ-Σ ADC with a single-cycle established digital filter, and an internal oscillator. The ADS1248IPWR also offers an integrated ultra-low drift voltage reference with a 10mA output capacity, as well as two matching programmable current-to-analog converters (Dacs). These devices provide a complete front-end solution for temperature sensor applications, including thermal couplers, thermistors and resistance temperature detectors (RTDS).

Technical Specification

Digit number: 24

Sampling rate (per second) : 2k

Input numbers: 4,7

Input type: Differential, single-ended

Data interface: SPI

Configuration: MUX-PGA-ADC

Ratio -S /H:ADC: -

Number of A/D converters: 1

Architecture: Triangular integral

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.25V

Voltage - Power supply, figure: 2.7V to 5.25V

Features: PGA, Temperature Sensor

Operating temperature: -40°C to 105°C

Packaging/Shell: 28-TSSOP

Installation type: Surface mount type

Typical applications

Temperature sensor measurement:

RTD, thermocouple and thermistor

Pressure measurement

Flowmeter

Factory automation and process control
