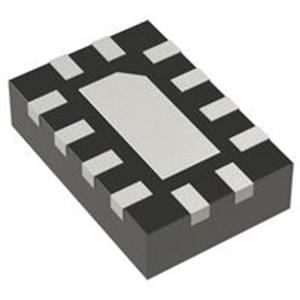

The MAX11198ATE is a high-performance dual-channel, 16-bit analogue-to-digital converter (ADC) based on a successive approximation register (SAR) architecture. It supports a sampling rate of up to 2 Msps (2 million samples per second) and features synchronous sampling capability. The chip integrates an internal reference voltage to ensure high-precision signal conversion. It is packaged in a 16-pin TQFN (2x3mm) package, offering a compact size and high integration.

MAX11198ATE Product Features

High Precision: 16-bit resolution ensures accurate signal conversion.

Fast Sampling: Supports sampling rates up to 2 Msps.

Synchronous Sampling: Two channels can sample simultaneously, suitable for applications requiring precise time synchronisation.

Integrated Reference Voltage: Built-in 2.5V reference voltage and reference buffer simplify design.

Low power consumption: Maintains low power consumption even at high sampling rates.

Wide operating voltage range: Supports analog power supply voltages from 3.0V to 5.25V.

Operating temperature range: -40°C to +125°C, suitable for various harsh environments.

MAX11198ATE Specifications

Product Type:    Analogue-to-Digital Converter (ADC)

Series:    MAX11198

Mounting Style:    SMD/SMT

Package/Case:    TDFN-16

Resolution:    16-bit

Number of Channels:    2 Channels

Interface Type:    SPI

Sampling Rate:    2 MS/s

Input Type:    Differential

Structure:    SAR

Analogue Power Supply Voltage:    3 V to 5.25 V

SNR – Signal-to-Noise Ratio:    89 dB

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

MAX11198ATE Product Applications

Current detection in motors

Encoders

LVDTs

PLCs

Decoders
