Service Telephone:86-755-83294757
Trade Name:Analogue To Digital Converters - ADC
Brand:ADI
Particular Year:25+

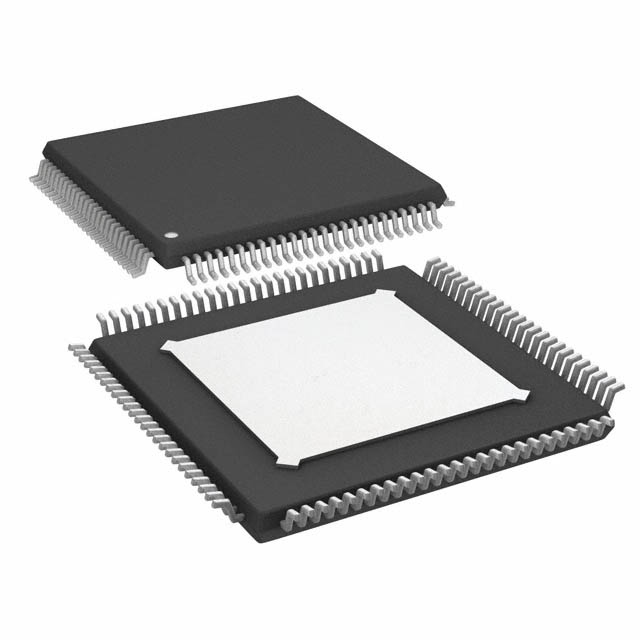

Package:TQFP-100
Delivery Date:New and original
Stock: 2500pcs
The AD9272BSVZ-80 is an eight-channel, 80 MSPS, 12-bit analog-to-digital converter (ADC), specifically designed for low-cost and small-sized applications. This product integrates an eight-channel variable gain amplifier (VGA), a low-noise preamplifier (LNA), an anti-aliasing filter (AAF), and a 12-bit analog-to-digital converter (ADC) ranging from 10 MSPS to 80 MSPS.
The AD9272BSVZ-80 mainly has the following parameters:
Resolution: 12 bits
Number of channels: 8 channels
Interface type: SPI
Sampling ratio: 80 MS/s
Input type: Single-Ended
Structure: Pipeline
Analog power supply voltage: 1.8V, 3V
Digital power supply voltage: 1.8V
SNR - Signal-to-noise Ratio: 63 dBFS
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 85 ° C
Packaging/Cabinet: TQFP-100
Each channel features a variable gain range of 42 dB, a fully differential signal link, an active input preamplifier terminal, a maximum gain of 52dB, and an ADC with a conversion rate up to 80MSPS. These channels are specifically optimized for dynamic range and low power consumption, making them suitable for applications with high requirements for package size.
Key applications
Youdaoplaceholder0 medical imaging/ultrasound : With optimized dynamic range and low power consumption features, the AD9272BSVZ-80 is suitable for medical devices.
Youdaoplaceholder0 automotive radar : Supports continuous wave (CW) Doppler mode and achieves signal switching through SPI programming control of 8×8 differential crossover switches.
