The MAX11195ATE is a 14-bit, dual-channel, synchronous sampling SAR ADC (successive approximation register analogue-to-digital converter) designed for high-precision data acquisition systems. The chip features a 2 Msps sampling rate and an SPI interface, making it suitable for applications such as industrial control, motor drive, and medical instruments that require high-resolution, low-noise signal conversion.

MAX11195ATE Product Features

High Precision: 14-bit resolution ensures accurate signal conversion.

Fast Sampling: Supports sampling rates up to 2 Msps (millions of samples per second).

Synchronous Sampling: Supports dual-channel synchronous sampling, ideal for motor control and sensor data acquisition.

Differential Input: Provides differential input to effectively reduce noise.

Low Power Consumption: Maintains low power consumption even at high sampling rates.

Wide Operating Voltage Range: Supports analog power supply voltages from 3V to 5.25V.

Operating Temperature Range: -40°C to +125°C, suitable for various harsh environments.

MAX11195ATE Product Attributes

Manufacturer:    Analog Devices Inc.

Product Type:    Analog-to-Digital Converter (ADC)

Series:    MAX11195

Mounting Style:    SMD/SMT

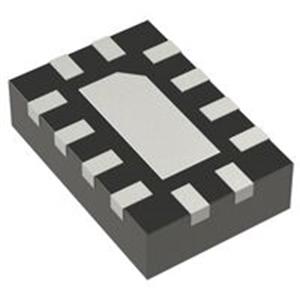

Package/Enclosure:    TDFN-16

Resolution:    14-bit

Number of Channels:    2 Channels

Interface Type:    SPI

Sampling Rate:    2 MS/s

Input Type:    Differential

Structure:    SAR

Analogue Power Supply Voltage:    3 V to 5.25 V

SNR – Signal-to-Noise Ratio:    84.6 dB

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

DNL - Differential Non-Linearity:    +/- 0.5 LSB

Gain Error:    +/-3.5 LSB

INL - Integral Non-Linearity:    +/- 1 LSB

Number of Converters:    2 Converters

Pd - Power Dissipation:    1.333 W

Reference Type:    Internal

Reference Voltage:    2.5 V

SFDR - Spurious-Free Dynamic Range:    112 dB

Shutdown:    No Shutdown

SINAD - Signal-to-Noise and Distortion Ratio:    84.7 dB
