The ADS42JB46IRGCR is a high-linearity, dual-channel, 14-bit, 160MSPS analog-to-digital converter (ADC). This device supports the JESD204B serial port with a data rate as high as 3.125Gbps. The buffered analog input significantly reduces the energy of sampling-hold glitter pulses while providing a unified input impedance, thus easily driving the analog input to extremely high input frequencies. The sampling clock divider can achieve a more flexible system clock architecture design. The ADS42JB46IRGCR employs an internal jitter algorithm to provide an outstanding spur-free dynamic range (SFDR) over a wide input frequency range.

The ADS42JB46IRGCR has the following main features

Dual-channel analog-to-digital converter (ADC

14-bit resolution

Maximum clock rate: 160MSPS

JESD204B serial port

Compatible with subcategories 0, 1 and 2

Up to 3.125Gbps

Support two-channel and four-channel

Analog input buffer with high-impedance input

Flexible input clock buffer:

Frequency division is 1,2 and 4

Differential full-scale input: 2VPP and 2.5VPP (register programmable)

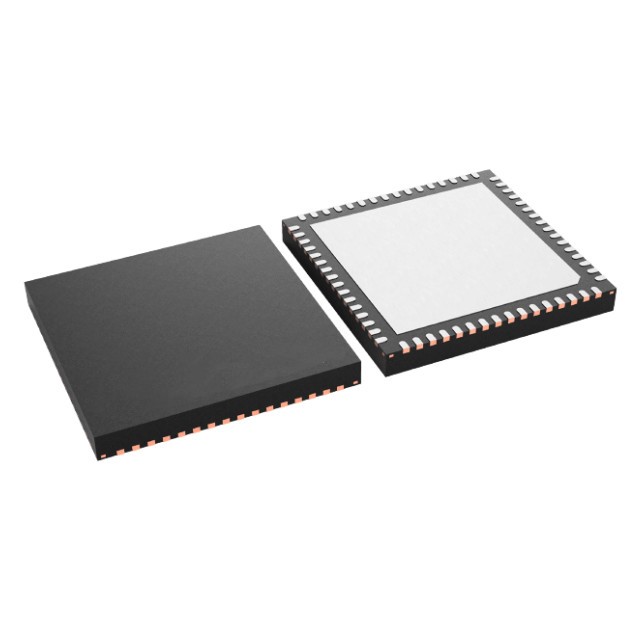

Package: 9mm x 9mm square flat lead-free (QFN)-64 package

Typical applications

Communication and cable infrastructure

Multi-carrier and multi-mode cellular receiver

Radar and smart antenna arrays

Broadband wireless

Testing and measuring instruments

Software-defined and diverse radio frequency

Microwave and dual-channel I/O receivers

Hub

Power amplifier linearization
