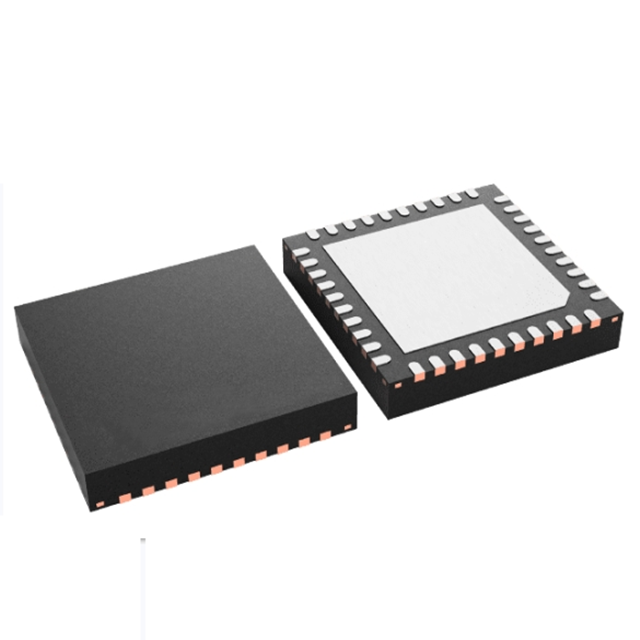

For picture reference, please see the specifications
< >

Commodity Model:ADS61JB46IRHAR

Trade Name:Analogue To Digital Converters - ADC

Brand:TI

Particular Year:25+

Package:VQFN-40

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADS61JB46IRHAR
Package
VQFN-40
Describe
A 14-bit, 160MSPS analog-to-digital converter (ADC) with a JESD204A output interface

Product Description

The ADS61JB46IRHAR is a high-performance, low-power, single-channel analog-to-digital converter featuring an integrated JESD204A output interface. Adopting a 6mm x 6mm QFN package and featuring both single-channel and dual-channel output modes, this device offers unprecedented compactness. This output interface is compatible with the JESD204A standard and has an additional mode (conforming to IEEE standard 802.3-2002, Part 3, Article 36.2.4.12) to achieve seamless integration with the TI TLK SERDES transceiver series products.


The ADS61JB46IRHAR has the following features

Output interface

Single-channel and dual-channel interfaces

Maximum data rate: 3.125Gbps

Comply with the technical specification of JEDEC JESD204A

Current mode logic (CML) output that can set the current between 2mA and 32mA

Power dissipation: In dual-channel mode, it is 583mW at 160MSPS

The power level decreases with the clock rate

Input interface: buffered analog input

Signal-to-noise ratio (SNR) at 185MHz IF: -72.7dBFS

Analog input dynamic range: 2VPP

Benchmark support: External and internal (adjusted)

Power supply:

Analog and digital power supply: 1.8V

Input buffer: 3.3V

Programmable digital gain: 0dB to 6dB

Output: Standard offset binary code or

Binary complement code

Package: 6mm x 6mm square flat lead-free (QFN)-40 package


Application field

Wireless base station infrastructure

Testing and measuring instruments
