The ADS5296ARGCR is a low-power, 12-bit, 8-channel analog-to-digital converter (ADC) with a sampling rate as high as 80MSPS. However, this device can also be configured to operate as a 4-channel ADC, running at a 2x sampling rate by interlacing the data of the two ADC channels. In the interleaved mode, this device accepts a double-frequency input clock. The ADC in each pair converts a common analog input signal on the alternating rising edge of twice the input clock. This device can be configured as a 10-bit, 4-channel ADC with a sampling rate up to 200MSPS, or a 12-bit, 4-channel ADC with a sampling rate up to 160MSPS.

Its key parameters

12-bit, 80MSPS: Signal-to-noise ratio (SNR) : 70.3dBFS

10-bit, 200MSPS: Signal-to-noise ratio (SNR) : 61.3dBFS

DNL - Differential nonlinearity: +/- 0.95 LSB

ENOB - Significant Bit: 11.3 bits

Feature: Low Power

Humidity sensitivity: Yes

Power consumption: 560 mW

SFDR - Stray dynamic range: 83 dB

SINAD - Signal-to-noise and distortion rate: 83 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

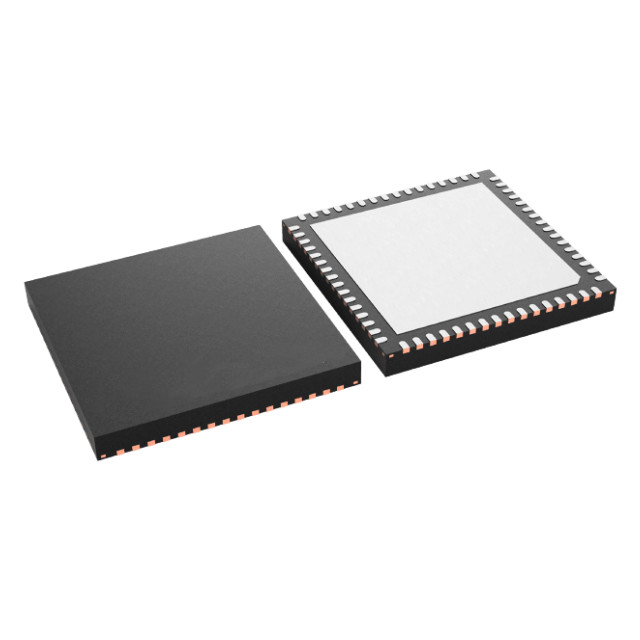

Package/Box: VQFN-64

Application field

The ADS5296ARGCR is suitable for application scenarios that require high-precision and high-speed sampling, such as communication, industrial control, test and measurement fields, etc. Its low power consumption design makes it particularly suitable for systems with strict power consumption requirements ‌.
