The ADS1120QPWRQ1 is a 16-bit, 2kSPS, 4-channel, low-power Δ-Σ analog-to-digital converter (ADC) suitable for small-signal sensors in the automotive category. It can reduce system costs and decrease the number of components in small sensor signal measurement applications. It has the following technical parameters:

Number of digits: 16

Sampling rate (per second) : 2k

Input numbers: 2,4

Input type: Differential, single-ended

Data interface: SPI

Configuration: MUX-PGA-ADC

Ratio -S /H:ADC: -

Number of A/D converters: 1

Architecture: Triangular integral

Reference types: external, internal, power supply

Voltage - Power supply, simulation: 2.3V to 5.5V

Voltage - Power supply, digital: 2.3V to 5.5V

Features: PGA, Temperature Sensor

Operating temperature: -40°C to 125°C

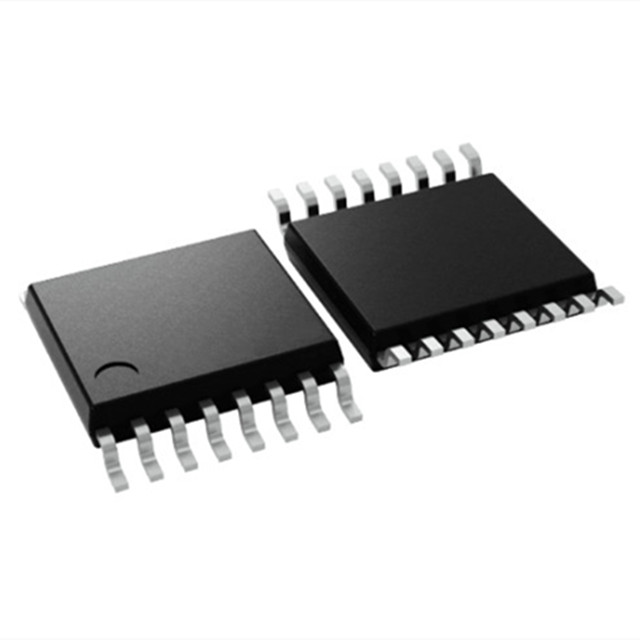

Package/Shell: 16-TSSOP (0.173", 4.40mm wide)

Supplier device packaging: 16-TSSOP

Installation type: Surface mount type

Grade: Automotive grade

Qualification: AEC-Q100

Basic product number: ADS1120QPWRQ1

Application scenarios

Temperature sensor

Thermocouple

Resistance temperature Detector (RTD)

2-wire, 3-wire or 4-wire types

Bridge sensor

Pressure sensor

Stress gauge

Battery voltage measurement
