The ADS1261IRHBR device is a 24-bit 40kSPS 10-channel Δ-Σ analog-to-digital converter (ADC) launched by (TI), which is suitable for factory automation and features PGA, VREF, IDAC and AC excitation. This device also contains a precise voltage reference and an internal fault monitor. These sensor-supported ADCs can provide high-precision single-chip solutions for the most demanding measurements, including weighing scales and resistance temperature detectors (RTDS).

Main specifications

Digit number: 24

Sampling rate (per second) : 40k

Input numbers: 5,10

Input type: Differential, single-ended

Data interface: SPI

Configuration: MUX-PGA-ADC

Ratio -S /H:ADC: -

Number of A/D converters: 1

Architecture: Triangular integral

Reference types: External, Internal

Voltage - Power supply, simulation: ±2.5V, 4.75V to 5.25V

Voltage - Power supply, figure: 2.7V to 5.25V

Features: PGA, Temperature Sensor

Operating temperature: -40°C to 125°C (TA)

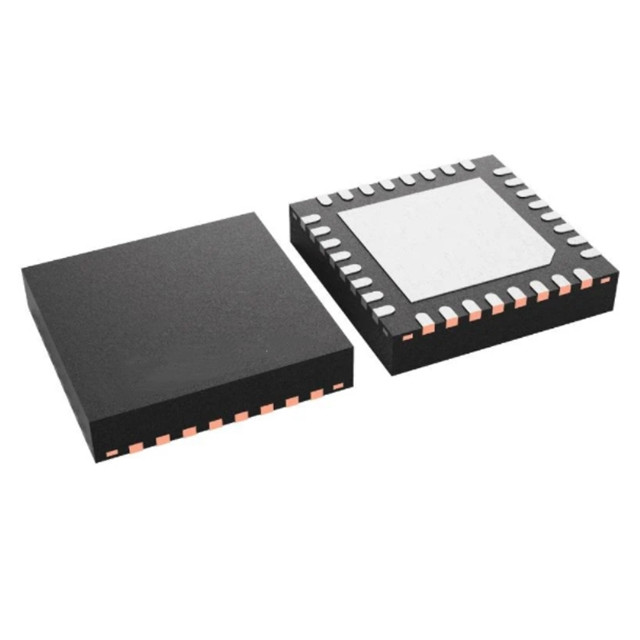

Package/Shell: 32-VFQFN

Typical applications of ADS1261IRHBR

• PLC analog input module

• Digital converters for weighing scales and strain gauges

• Temperature and pressure measurement

• Laboratory instruments

• Process analysis
