The ADS54J60IRMP is a dual-channel, 16-bit, 1.0GSPS analog-to-digital converter (ADC) produced by TI. This device is designed with a high signal-to-noise ratio (SNR), providing a noise base of -159 DBFS /Hz, thereby assisting applications in achieving the highest dynamic range within a wide instantaneous bandwidth. The ADS54J60IRMP supports the JESD204B serial interface, with a data transmission rate of up to 10Gbps. Each ADC can support 2 or 4 channels.

The ADS54J60IRMP mainly has the following functions

16-bit resolution, dual-channel, 1GSPS ADC

Background noise: -159 DBFS /Hz

Spectral performance (fIN = 170MHz, -1 DBFS) :

Signal-to-noise ratio (SNR) : 70dBFS

Noise spectral density (NSD) : -157 DBFS /Hz

SFDR: 86dBc (including interlaced tones)

SFDR: 89dBc (excluding HD2, HD3 and interlaced tones)

Spectral performance (fIN = 350MHz, -1 DBFS) :

SNR: 67.5dBFS

NSD: -154.5 dBFS/Hz

SFDR: 75dBc

SFDR: 85dBc (excluding HD2, HD3 and interlaced tones)

Channel isolation: 100dBc when fIN = 170MHz

Input full scale: 1.9VPP

Input bandwidth (3dB) : 1.2GHz

On-chip jitter

Integrate broadband DDC blocks

Support the JESD204B interface for subclass 1:

Each ADC has 2 channels at 10.0Gbps

Each ADC has 4 channels at 5.0Gbps

Support multi-chip synchronization

Power consumption: 1.35W per channel at 1GSPS

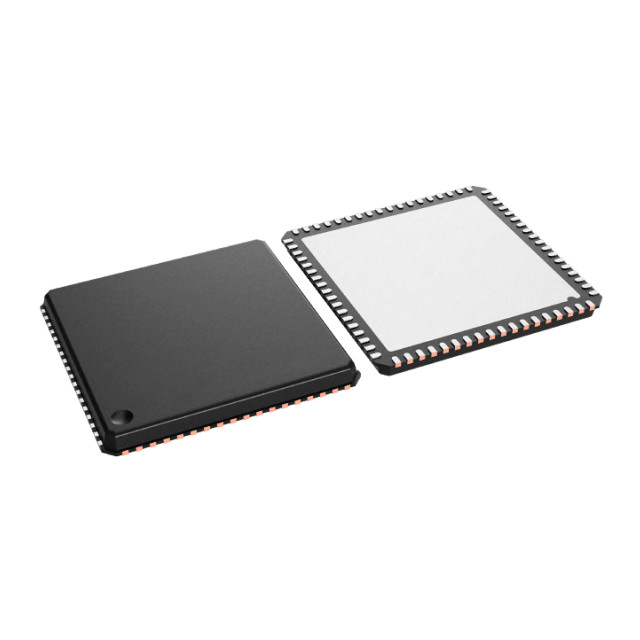

Package: 72-pin VQFNP (10mm × 10mm)

In addition, the ADS54J60IRMP is mainly applied in the following multiple fields, including:

Radar and antenna array

Broadband wireless

Wired CMTS, DOCSIS 3.1 receiver

Communication test equipment

Microwave receiver

Software-defined Radio (SDR

Digitalizer

Medical imaging and diagnosis
