The ADS54J40IRMP is a low-power, high-bandwidth, 14-bit, 1.0GSPS dual-channel analog-to-digital converter (ADC). This device features a high signal-to-noise ratio (SNR), providing a background noise of -158 DBFS /Hz for applications that require an ultra-high dynamic range within a high instantaneous bandwidth.

The ADS54J40IRMP supports the JESD204B serial interface, with a data transmission rate as high as 10.0Gbps. Each ADC can support dual channels or four channels. The buffered analog input can provide a uniform input impedance over a wide frequency range and minimize the sampling and retention of glitz pulse energy as much as possible. Each ADC channel can be optionally connected to the digital down-converter (DDC) module. The ADS54J40IRMP offers outstanding spur-free dynamic range (SFDR) over a wide input frequency range with ultra-low power consumption.

The ADS54J40IRMP has the following main features

• 14-bit resolution, dual-channel, 1GSPS ADC

• Background noise: -158 DBFS /Hz

• Spectral performance (fIN = 170MHz, -1 DBFS) :

-SNR: 69.0dBFS

-NSD: -155.9dBFS/Hz

-SFDR: 86dBc (including interlaced tones)

-SFDR: 89dBc (excluding HD2, HD3 and interlaced tones)

• Spectral performance (fIN = 350MHz, -1 DBFS) :

-SNR: 66.3dBFS

-NSD: -153.3dBFS/Hz

-SFDR: 75dBc

-SFDR: 85dBc (excluding HD2, HD3 and interlaced tones)

• Channel isolation: 100dBc when fIN = 170MHz

• Full-scale input: 1.9V VPP

• Input bandwidth (3dB) : 1.2GHz

• On-chip jitter

• Integrated broadband DDC block

• Support the JESD204B interface of subclass 1:

- 2 channels per ADC at 10.0Gbps

-- 4 channels per ADC at 5.0Gbps

- Support multi-chip synchronization

• Power dissipation: 1.35W per channel at 1GSPS

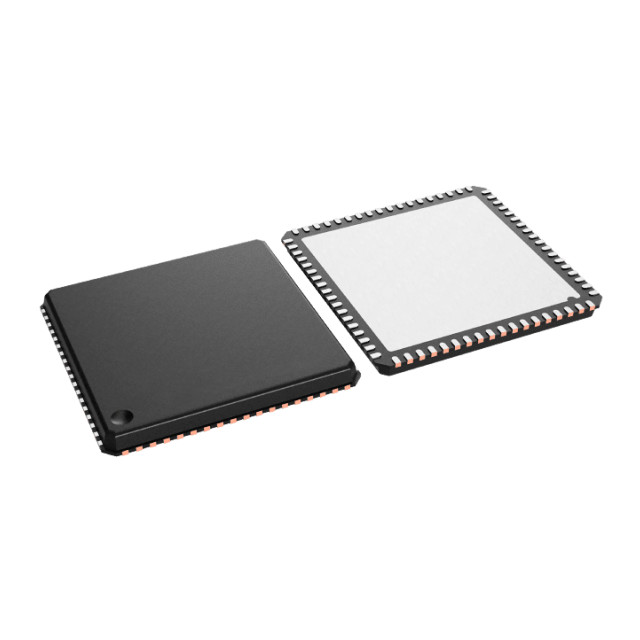

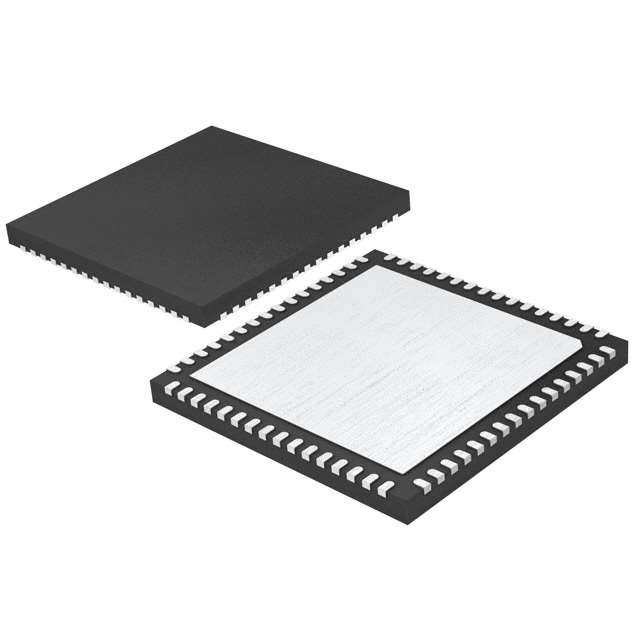

• Package: 72 pin VQFNP (10mm × 10mm)
