The ADS54J66IRMP is a low-power, high-bandwidth, 14-bit, 500MSPS, four-channel telecommunication receiver. The ADS54J66IRMP supports the JESD204B serial interface, with one channel on each channel and a data transmission rate of up to 10Gbps. The buffered analog input can provide a unified input impedance over a wide frequency range and minimize the energy of sampling and holding glitches to the greatest extent. The ADS54J66IRMP offers an outstanding spur-free dynamic range (SFDR) over a wide input frequency range with ultra-low power consumption. The digital signal processing module contains a complex mixer, which is then connected to a low-pass filter. The low-pass filter has two options: 2x extraction rate and 4x extraction rate, and supports a receiver bandwidth of up to 200MHz.

Main characteristics

• Four channels

• 14 bit resolution

• Maximum clock frequency: 500MSPS

• Input bandwidth (3dB) : 900MHz

• On-chip jitter

• Analog input buffer with high-impedance input

Output options:

-RX: Implement 2x and 4x extraction rate options through a low-pass filter

-200 MHZ complex bandwidth or 100MHz actual bandwidth support

-DPD FB: 500MSPS

• 1.9VPP differential full-scale input

• JESD204B interface:

-Support for Subclass 1

-One channel per ADC with rates up to 10Gsps

-Sync pins specifically for channel pairs

• Support multi-chip synchronization

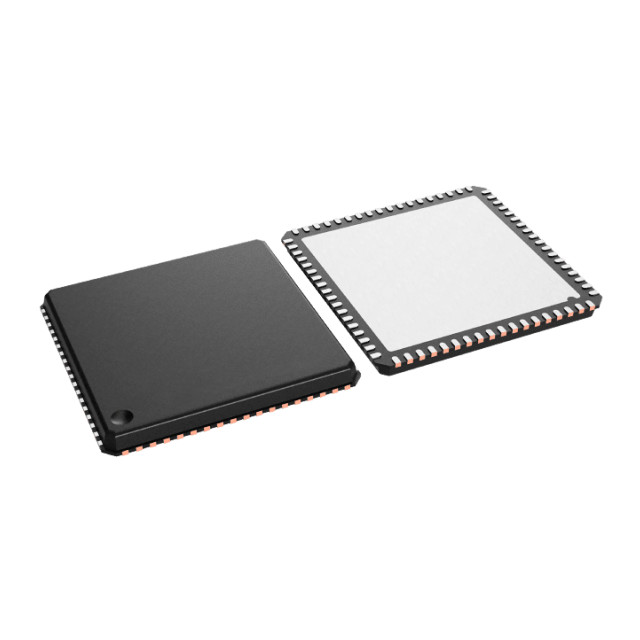

• 72-pin VQFN package (10mm × 10mm)

The application of ADS54J66IRMP

Radar and antenna array

Broadband wireless and digital converters

Cable CMTS, DOCSIS 3.1 receiver

Communication test equipment

Microwave receiver

Software-defined Radio (SDR
