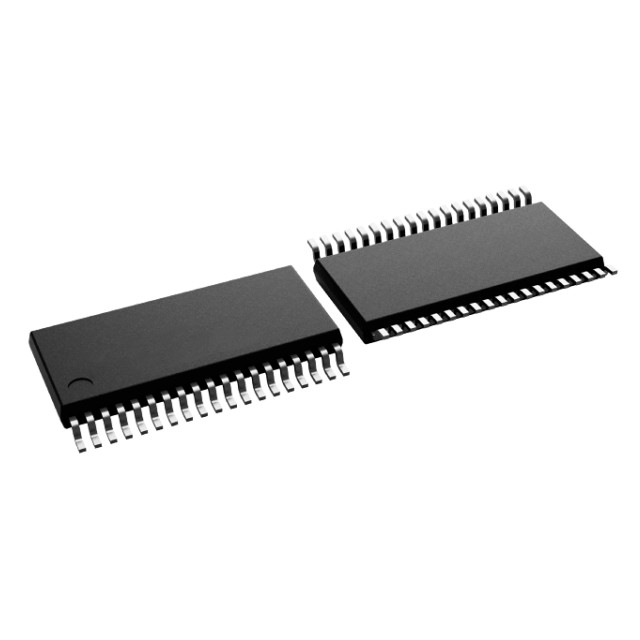

The ADS8698IDBTR is an 8-channel integrated data acquisition system based on an 18-bit successive approximation register (SAR) analog-to-digital converter (ADC), with a working throughput of up to 500kSPS. This device provides an integrated analog front-end circuit for each input channel (overvoltage protection up to ±20V), an 8-channel multiplexer supporting both automatic and manual scanning modes, and an on-chip reference voltage of 4.096V with low temperature drift.

In addition, the ADS8698IDBTR provides a simple serial interface compatible with the Serial Peripheral Interface (SPI) for digital hosts, and supports the connection of multiple devices in a Daisy chain manner. The digital power supply can provide voltages within the range of 1.65V to 5.25V, and thus can be directly connected to various host controllers.

Main characteristics

High precision ‌ : 18-bit resolution, differential nonlinearity (DNL) ±0.5 LSB, integral nonlinearity (INL) ±1.5 LSB‌.

High-speed sampling rate ‌ : 500kSPS, suitable for high-speed data acquisition applications ‌.

Multi-channel ‌ : Supports 4-channel and 8-channel modes, with auto and manual scanning ‌.

Wide input range ‌ : Supports bipolar input range, input voltage range is ±10.24V, ±5.12V, ±2.56V‌.

Low power ‌ : With a power consumption of 65mW, suitable for applications requiring low power ‌.

High signal-to-noise ratio ‌ : With a signal-to-noise ratio (SNR) of 93.5dB and total harmonic distortion (THD) of -105dB, suitable for high-precision measurement ‌.

Flexible input configuration ‌ : Each channel can independently program the input range, supporting ±10.24V, ±5.12V, ±2.56V‌.

Interface type ‌ : SPI interface supported, Daisy chain connection supported ‌.

Application field

The ADS8698IDBTR is suitable for a variety of industrial applications that require high-precision and high-speed data acquisition, including:

Electric power automation

Protect the repeater

PLC analog input module
