The ADS8685IPWR is a high-performance 16-bit analog-to-digital converter (ADC) with a programmable bipolar input range and a high-speed sampling rate. Youdaoplaceholder0 supports multiple input ranges including ±12.288V, ±10.24V, ±6.144V, ±5.12V and ±2.56V for different application scenarios. The ADS8685IPWR has a maximum sampling rate of 500kSPS, supports I2C and SPI communication interfaces, and is suitable for systems requiring high-precision data acquisition ‌.

Technical parameters

Number of digits: 16

Sampling rate (per second) : 500k

Input number: 1

Input type: Individual pseudo-differential, single-ended

Data interface: SPI

Configuration: PGA-S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 5V

Voltage - Power supply, digital: 1.65V to 5.25V

Feature: PGA

Operating temperature: -40°C to 125°C (TA)

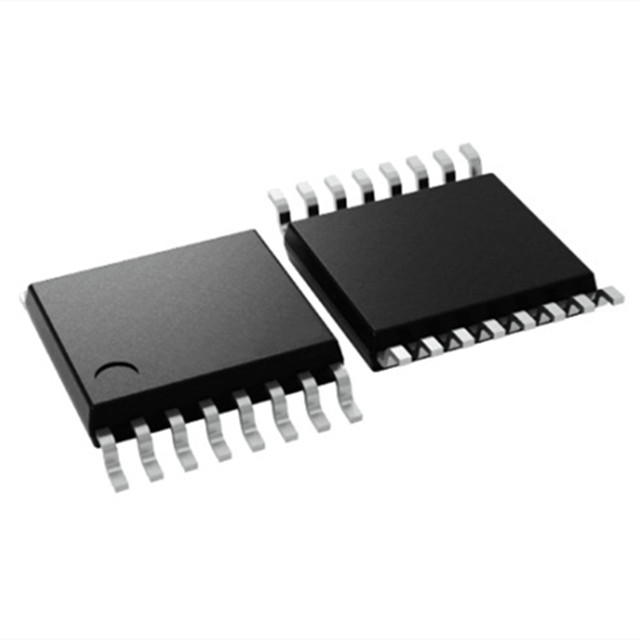

Package/Shell: 16-TSSOP

Apply rice rolls

The ADS8685IPWR is widely used in scenarios that require high-precision data acquisition, such as:

• Analog input module

• Semiconductor testing

• Servo drive control module
