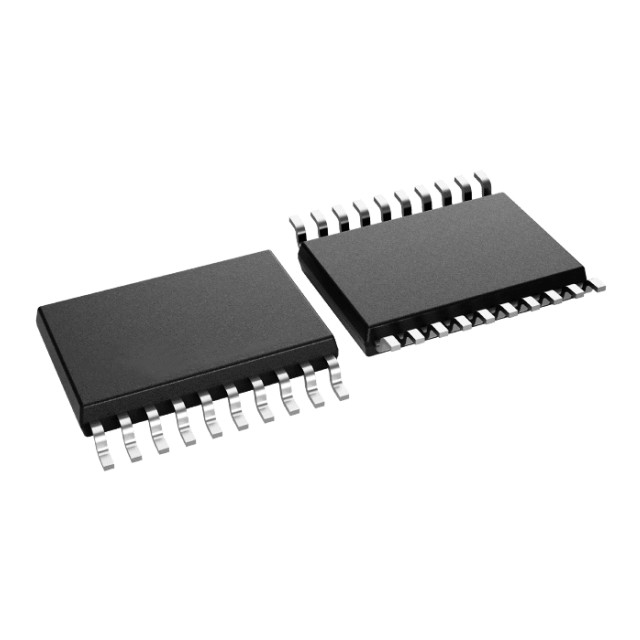

The ADS131M04IPWR is a four-channel, synchronous sampling, 24-bit, Δ-Σ, analog-to-digital converter (ADC) with a wide dynamic range, low power consumption and dedicated energy measurement functions, making this device highly suitable for applications in energy metering, power measurement and circuit breakers. Its technical parameters are:

Digit number: 24

Sampling rate (per second) : 32k

Input number: 4

Input type: Differential

Data interface: Serial, SPI

Configuration: PGA-ADC

Ratio -S /H:ADC: 0:4

Number of A/D converters: 4

Architecture: Triangular integral

Reference type: Internal

Voltage - Power supply, simulation: 2.7V to 3.6V

Voltage - Power supply, digital: 1.65V to 2V

Feature: -

Operating temperature: -40°C to 125°C

Package/Shell: 20-TSSOP

Application field

The ADS131M04IPWR is suitable for the following application scenarios:

Electricity metering ‌ : For measuring voltage and current, suitable for electricity meters and power meters.

Industrial Control ‌ : Achieving high-precision signal conversion in industrial automation and process control.

Medical equipment ‌ : used in medical instruments that require high precision measurement.

Scientific instruments ‌ : for data acquisition and analysis in the field of scientific research.
