The ADS131M02IRUKR is a dual-channel, synchronous sampling, 24-bit, Δ-Σ analog-to-digital converter (ADC) with a wide dynamic range, low power consumption and specific functions for energy measurement. Therefore, it is highly suitable for energy metering, power metering and circuit breaker applications. This ADC input can be directly connected to a resistor voltage divider network or power transformer to measure voltage, or connected to a current transformer, shunt or Rogowski coil to measure current.

Technical parameters

Digit number: 24

Sampling rate (per second) : 32k

Input number: 2

Input type: Differential

Data interface: Serial, SPI

Configuration: PGA-ADC

Ratio -S /H:ADC: 0:2

Number of A/D converters: 2

Architecture: Triangular integral

Reference type: Internal

Voltage - Power supply, simulation: 2.4V to 3.6V

Voltage - Power supply, digital: 1.65V to 3.6V

Feature: PGA, Synchronous Sampling

Operating temperature: -40°C to 125°C

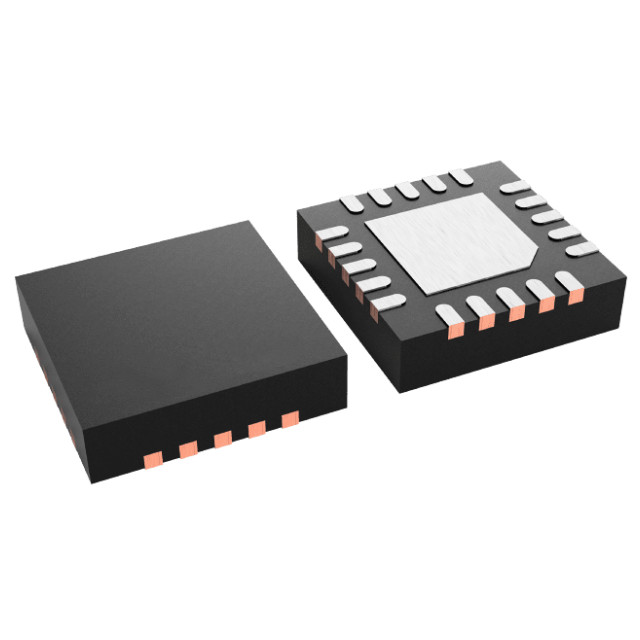

Package/Shell: 20-WFQFN

In addition, the ADS131M02IRUKR, with its high precision, low power consumption and wide dynamic range, is highly suitable for the following application scenarios:

• Electricity meters: Commercial electricity meters and residential electricity meters

• Circuit breakers

• Protection relay

• Power quality monitor

• Battery test equipment

• Battery management system
