The ADC12J2700NKER is a high-performance 12-bit analog-to-digital converter (ADC) that supports sampling rates up to 2.7 GSPS (billion times per second) ‌. This ADC features an advanced dual-channel architecture that enables low power consumption and high precision signal conversion, making it particularly suitable for applications requiring high dynamic range and high precision ‌. Typical applications include:

• Wireless infrastructure

• RF-Sampling software-defined radio

• Broadband microwave return journey

• Military communications

• Signal

• Radar and lidar

• DOCSIS/Cable infrastructure

• Testing and measurement

In addition, the ADC12J2700NKER also features the following main specifications:

Maximum sampling rate: 2700MSPS

Minimum sampling rate: 1000MSPS

DDC output word size: 15-digit complex number (total 30 digits)

Bypass output word size: 12-bit offset binary number

Noise background: -147.3 dBFS/Hz

Third-order intermodulation distortion (IMD3) : -64 DBC (At -13 DBFS, FIN = 2140MHz ± 30MHz)

Full power Bandwidth (FPBW) (-3dB) : 3.2GHz

Peak noise power ratio (NPR) : 46dB

Power supply voltage: 1.9V and 1.2V

Power consumption

Bypass (2700MSPS) : 1.8W

Power-off mode: < 50mW

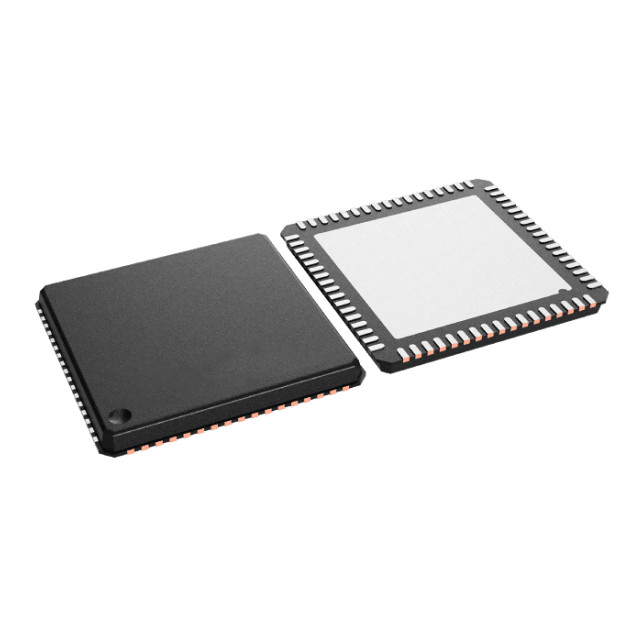

The ADC12J2700NKER device adopts a 68-pin ultra-thin tetragonal flat leadless (VQFN) package. The industrial ambient operating temperature range of this device is -40 °C ≤ TA ≤ 85°C.
