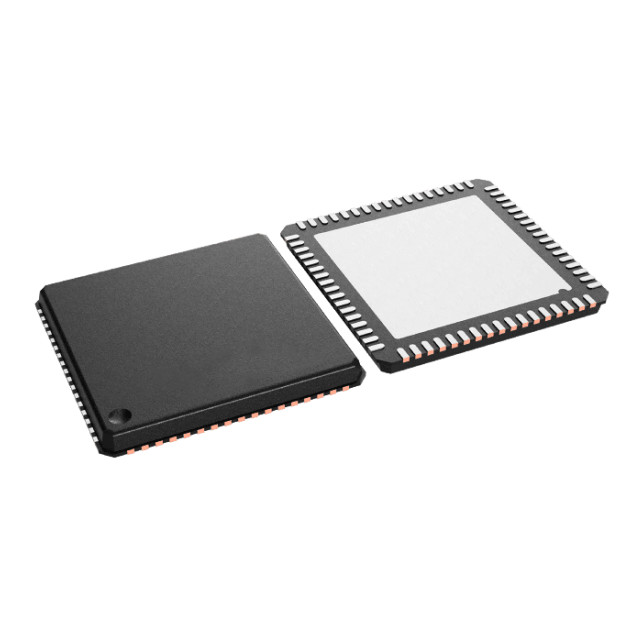

For picture reference, please see the specifications
< >

Commodity Model:ADC12J1600NKER

Trade Name:Analogue To Digital Converters - ADC

Brand:TI

Particular Year:25+

Package:VQFN-68

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADC12J1600NKER
Package
VQFN-68
Describe
12-bit, 1.6GSPS, RF sampling analog-to-digital converter (ADC)

Product Description

The ADC12J1600NKER is a 12-bit, 1.6GSPS, RF sampling analog-to-digital converter (ADC) with JESD204B interface and differential input type ‌‌. This chip has the following main characteristics:

Outstanding noise and linearity performance, up to FIN = 3GHz or more

Configurable digital down-converter (DDC)

The extraction factor range is from 4 to 32 (complex baseband output)

The bypass mode is applicable to the entire Nyquist output bandwidth

Under the conditions of 4x extraction rate and 1600MSPS, the available output bandwidth is 320MHz

Under the conditions of 32x extraction rate and 1600MSPS, the available output bandwidth is 40MHz

Low pin number JESD204B subclass 1 interface

Automatically optimize the output channel count

Embedded low-latency signal range indication

Low power consumption


Application

Wireless infrastructure

• RF-Sampling software-defined radio

• Broadband microwave return journey

Military communication

• Signal

Radar and lidar

• DOCSIS/Cable infrastructure

• Testing and measurement


The main specifications of ADC12J1600NKER

Maximum sampling rate: 1.6GSPS

Minimum sampling rate: 1000MSPS

DDC output word size: 15-digit complex number (total 30 digits)

Bypass output word size: 12-bit offset binary number

Noise background: -145 DBFS /Hz

Third-order intermodulation distortion (IMD3) : -64 DBC (At -13 DBFS, FIN = 2140MHz ± 30MHz)

Full power Bandwidth (FPBW) (-3dB) : 3.2GHz

Peak noise power ratio (NPR) : 46dB

Power supply voltage: 1.9V and 1.2V
