The ADC34J45IRGZR device is a high-linearity, ultra-low power, four-channel, 14-bit, 160MSPS analog-to-digital converter (ADC) launched by (TI). This device is specifically designed to support high input frequency signals with wide dynamic range requirements and strict demands. When the SYSREF input achieves the synchronization of the entire system, the clock input crossover will provide greater design flexibility for the system clock architecture.

The internal phase-locked loop (PLL) of this device multiples the incoming ADC sampling clock by 20 to obtain the bit clock used when serially outputting 14-bit data for each channel. The ADC34J45IRGZR device supports subclass 1, with an interface rate up to 3.2Gbps.

The main features and technical parameters of ADC34J45IRGZR are:

Four channels

14-bit resolution

1.8V single power supply

A flexible input clock buffer supporting 1-way, 2-way and 4-way division

When fIN = 70 MHz, the signal-to-noise ratio (SNR) = 72dBFS and the spurious dynamic range (SFDR) = 86dBc

Ultra-low power consumption: 203mW per channel at 160MSPS

Channel isolation: 105dB

Internal jitter

JESD204B serial port

Support subclasses 0, 1, and 2

Support one channel for each ADC (up to 160MSPS)

Support multi-chip synchronization

Pin-to-pin compatibility with 12-bit version devices

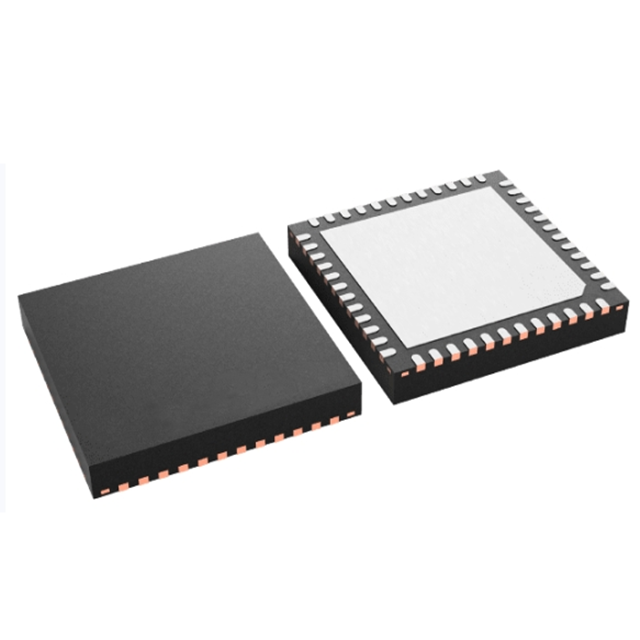

Package: Ultra-thin square flat leadless (VQFN)-48 (7mm x 7mm)

Application scenarios

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analyzer

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers
