The ADC34J42IRGZR is a high-performance, four-channel, 14-bit, 50MSPS analog to digital converter (ADC) designed specifically to support high input frequency signals and wide dynamic range requirements ‌. This device features a wide dynamic range and can meet the requirements of a large dynamic range. It is equipped with an internal clock input frequency divider, providing more flexibility in the design of the system clock architecture.

Technical parameters

Digit number: 14

Sampling rate (per second) : 50M

Input number: 4

Input type: Differential

Data interface: JESD204B

Configuration: ADC

Ratio -S /H:ADC: -

Number of A/D converters: 4

Architecture: Pipeline

Reference types: External, Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

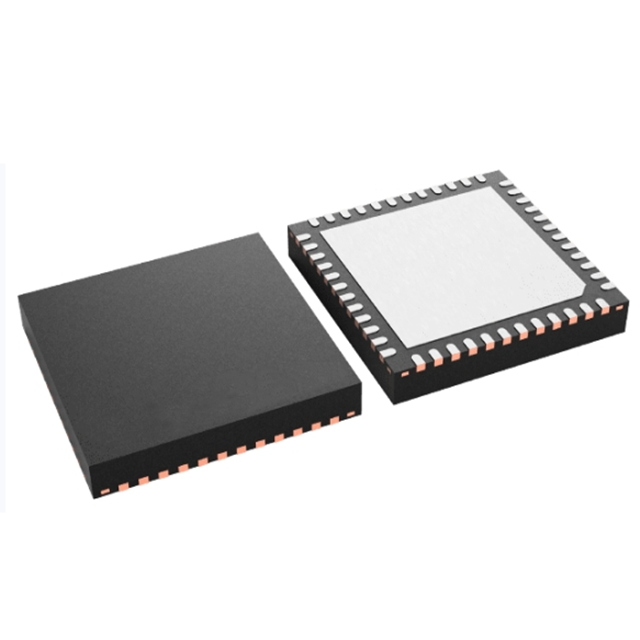

Package/Shell: 48-VFQFN

These parameters make the ADC34J42IRGZR perform well in applications that require high-speed, high-precision sampling, such as communication, test and measurement, and industrial control ‌.
