The ADC3244IRGZR is a dual-channel 14-bit 125MSPS analog-to-digital converter (ADC) with the following technical specifications:

Digit number: 14

Sampling rate (per second) : 125M

Input number: 2

Input type: Differential

Data interface: LVDS - Serial

Configuration: ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 2

Architecture: Pipeline

Reference types: External, Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

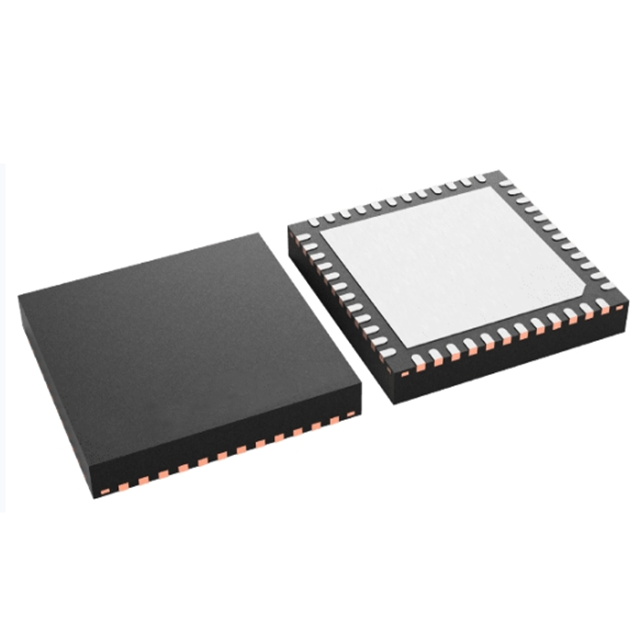

Package/Shell: 48-VFQFN

The ADC3244IRGZR is specifically designed to support high input frequency signals with wide dynamic range requirements and strict demands. When the SYSREF input achieves the synchronization of the entire system, the clock input crossover will provide greater flexibility in the design of the system clock architecture. In addition, the ADC3244IRGZR also supports serial low-voltage differential signaling (LVDS), thereby reducing the number of interface lines and achieving high system integration.

Typical applications

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analyzer

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers

Handheld radios and instruments

ADC3244IRGZR, with its features of high precision, high speed and low power consumption, has become an ideal choice for many applications that require high-performance ADCs.
