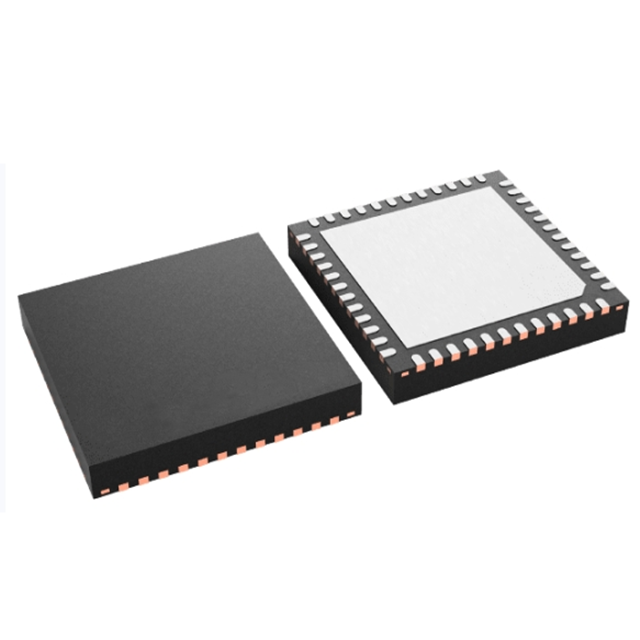

The ADC3243IRGZR is a dual-channel, 14-bit resolution analog-to-digital converter (ADC) produced by (TI) with a sampling rate of 80MSPS. Youdaoplaceholder0 This device is specifically designed to support high input frequency signals with wide dynamic range and demanding requirements, and is primarily targeted at applications that require high precision and high speed conversion ‌.

Technical Specification

Digit number: 14

Sampling rate (per second) : 80M

Input number: 2

Input type: Differential

Data interface: LVDS - Serial

Configuration: ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 2

Architecture: Pipeline

Reference types: External, Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

Package/Shell: 48-VFQFN

Application scenarios

The ADC3243IRGZR is suitable for various electronic devices that require high precision and high-speed conversion, and performs exceptionally well in the following fields:

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analyzer

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers

Handheld radios and instruments
