The ADC3224IRGZR is a dual-channel, 12-bit, 125MSPS analog-to-digital converter (ADC) produced by (TI), specifically designed to support high input frequency signals with wide dynamic range requirements and strict demands. In addition, the ADC3224IRGZR also supports serial low-voltage differential signal (LVDS) interfaces, thereby reducing the number of interface lines and achieving high system integration.

Main characteristics

Dual-channel

12-bit resolution

Single power supply: 1.8V

Serial LVDS Interface (SLVDS)

A flexible input clock buffer supporting 1-way, 2-way and 4-way division

When fIN = 70MHz, SNR = 70.2dBFS and SFDR = 87dBc

Ultra-low power consumption: 116mW per channel at 125MSPS

Channel isolation: 105dB

Internal jitter and chopping

Support multi-chip synchronization

It has pin-to-pin compatibility with the 14-bit version

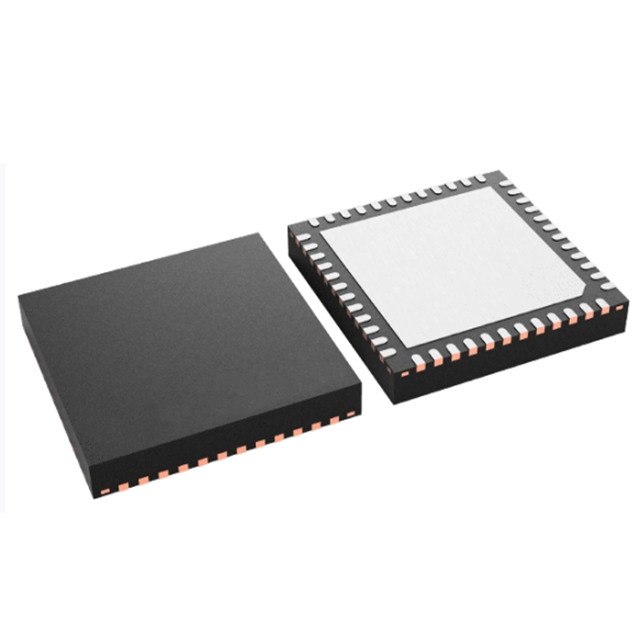

Package: VQFN-48 (7mm × 7mm)

Typical applications

The ADC3224IRGZR is suitable for applications that require high precision, high speed and low power consumption, such as

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analysis

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers

Hold the radio and instruments
