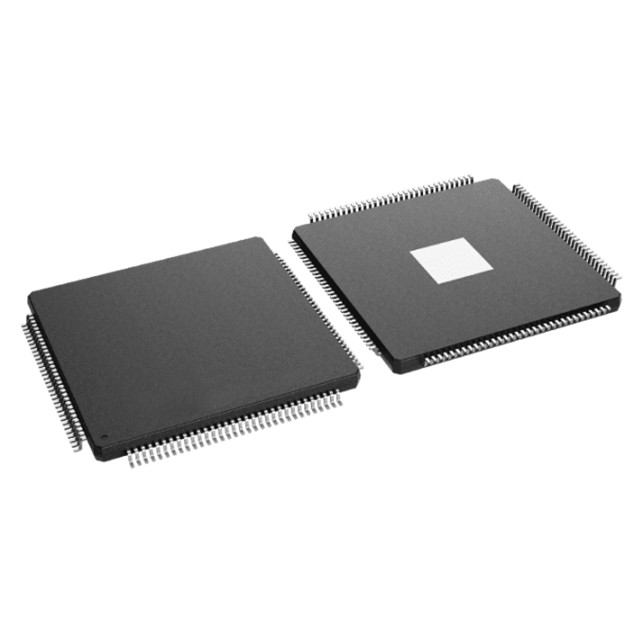

Commodity Model:ADC07D1520CIYB

Trade Name:Analogue To Digital Converters - ADC

Brand:TI

Particular Year:25+

Package:HLQFP-128

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADC07D1520CIYB
Package
HLQFP-128
Describe
Low-power, 7-bit, dual-channel 1.5GSPS analog-to-digital converter (ADC)

Product Description

The ADC07D1520CIYB is a dual-channel, low-power, high-performance CMOS analog-to-digital converter. This device digitizes the signal into a 7-bit resolution at a sampling rate as high as 1.5 GSPS. Its functions include test mode output for system debugging, clock phase adjustment and an optional output demultiplexer mode.

Technical Specification

Digit number: 7

Sampling rate (per second) : 3G

Input number: 2

Input type: Differential

Data interface: LVDS - Parallel

Configuration: MUX-S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 2

Architecture: Folding and interpolation

Reference type: Internal

Voltage - Power supply, simulation: 1.8V to 2V

Voltage - Power supply, digital: 1.8V to 2V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

Package/Shell: 128-HLQFP


ADC07D1520CIYB ensures no missed codes throughout the entire operating temperature range. The unique folding and interpolation architecture, the fully differential comparator design, the innovative design of the internal sampling-holding amplifier, and the self-calibration scheme make the response of all dynamic parameters very flat, with an input signal of 748 MHz and a sampling rate of 1.5 GHz. Meanwhile, it provides a bit error rate (C.E.R.) of 10-18. The output format is offset binary. The low-voltage differential signal (LVDS) digital output is compatible with IEEE 1596.3-1996, except for the adjustable common-mode voltage between 0.8V and 1.2V.


Application scenarios

● Direct radio frequency down-conversion

● Digital oscilloscope

● Satellite set-top box

● Communication system

● Testing instruments
