The ADC32J42IRGZR is a high-linearity, ultra-low-power analog-to-digital converter that supports dual channels, has a resolution of 14 bits, and a sampling rate of 50MSPS. This device is specifically designed to support high input frequency signals with wide dynamic range requirements and demanding requirements for applications that require high precision and high speed conversion ‌.

The ADC32J42IRGZR has the following main features

Dual-channel

14-bit resolution

Single power supply: 1.8V

A flexible input clock buffer supporting 1-way, 2-way and 4-way division

When fIN = 70MHz, the signal-to-noise ratio (SNR) = 72.2dBFS and the spurious dynamic range (SFDR) = 87dBc

Ultra-low power consumption: 281 mW per channel at 50MSPS

Channel isolation: 105dB

Internal jitter

JESD204B serial port

Compatible with subclasses 0, 1, and 2, with a maximum rate of 3.2Gbps

Support one channel for each ADC (up to 160MSPS)

Support multi-chip synchronization

Pin-to-pin compatibility with the 12-bit version device (ADC32J2X)

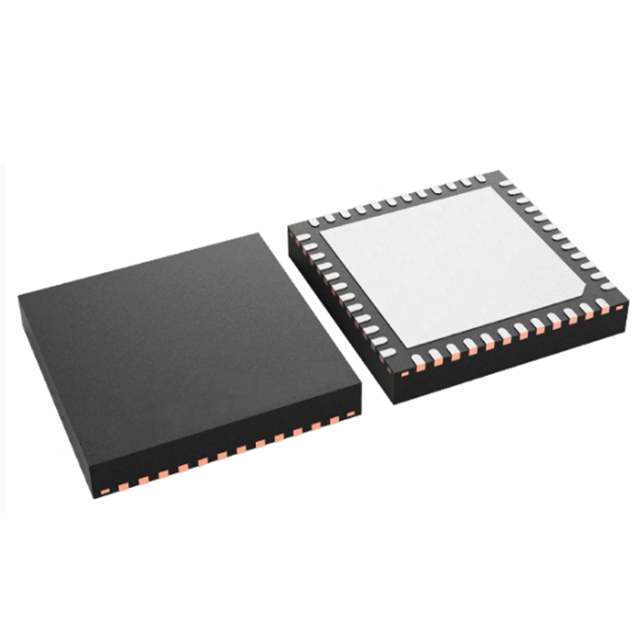

Package: Ultra-thin square flat leadless (VQFN)-48 (7mm x 7mm)

The ADC32J42IRGZR supports the JESD204B interface, which is a serial interface. Through a single differential pair, the data of each ADC can be serially output, reducing the number of interface lines and enhancing the system integration. Typical applications include:

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analyzer

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers
