The ADC32J23IRGZR device is a dual-channel, 12-bit, 80MSPS analog-to-digital converter (ADC). This device is specifically designed to support high input frequency signals with wide dynamic range requirements and strict demands, featuring high linearity and ultra-low power consumption. The ADC32J23IRGZR supports the JESD204B interface, reducing the number of interface lines and enhancing system integration. Its internal phase-locked loop (PLL) can multiply the incoming ADC sampling clock by 20 to obtain the bit clock needed for 12-bit data on each channel of the serial output ‌.

Its main specifications include

Dual-channel

12-bit resolution

1.8V single power supply

A flexible input clock buffer supporting 1-way, 2-way and 4-way division

When fIN = 70MHz, the signal-to-noise ratio (SNR) = 70.3dBFS and the spurious dynamic range (SFDR) = 88dBc

Ultra-low power consumption: 329 mW

Channel isolation: 105dB

Internal jitter

JESD204B serial port

Compatible with subclasses 0, 1, and 2, with a maximum rate of 3.2Gbps

Support one channel for each ADC (up to 160MSPS)

Support multi-chip synchronization

Pin-to-pin compatibility with the 14-bit version device (ADC32J4X)

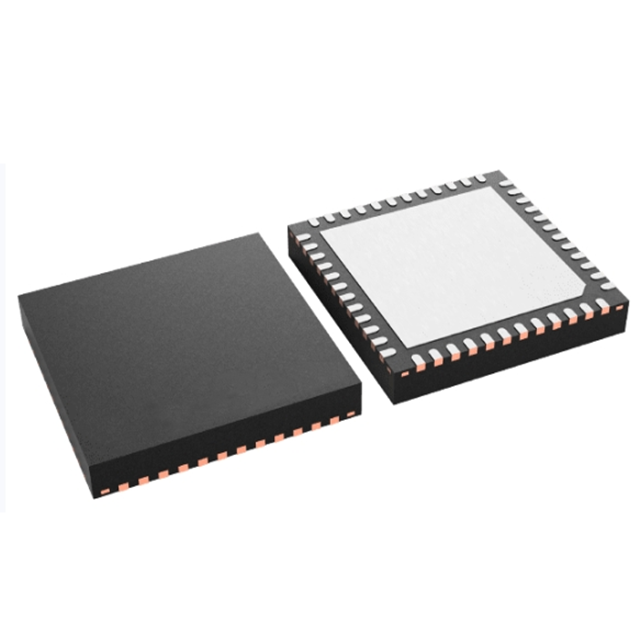

Package: Ultra-thin square flat leadless (VQFN)-48 (7mm x 7mm)

Application scenarios

The ADC32J23IRGZR is suitable for applications that require high input frequency signal processing, such as communication, test and measurement, industrial control, and other fields. Its high dynamic range and flexible clock input divider make it excel in systems that require high precision and flexibility ‌.
