The ADC3423IRTQR is a four-channel, 12-bit, 80MSPS analog-to-digital converter (ADC) designed for high-linearity, ultra-low-power applications ‌. Its main specifications include:

Interface type: I2C

ENOB - Significant Bit: 11.5 bits

Feature: Low Power

Humidity sensitivity: Yes

Power consumption: 288 mW

SFDR - Stray dynamic range: 93 dB

SINAD - Signal-to-noise and distortion rate: 70.7 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

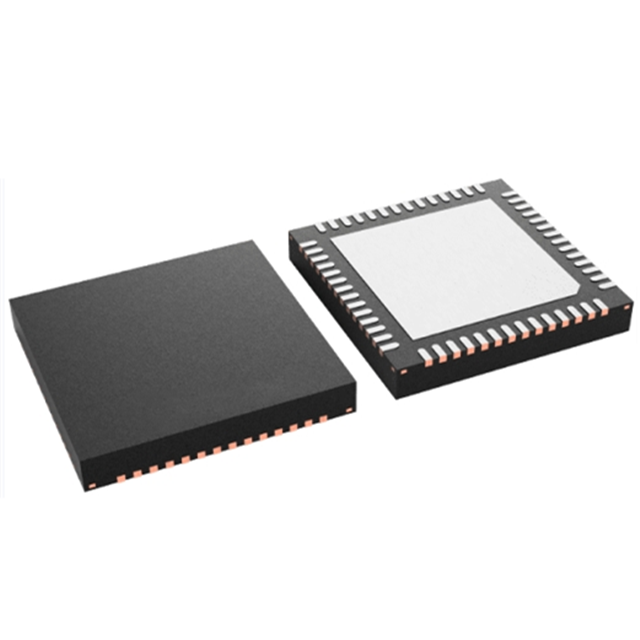

Package/Box: QFN-56

In addition, the ADC3423IRTQR supports serial low-voltage differential signals (LVDS), thereby reducing the number of interface lines and achieving high system integration. ADC3423IRTQR is widely used in the following fields:

Multi-carrier and multi-mode cellular base stations

Radar and smart antenna arrays

Shell guidance

Motor control feedback

Network and vector analyzer

Communication test equipment

Non-destructive testing

Microwave receiver

Software-defined Radio (SDR

Orthogonal and diversity radio receivers
