The ADC31JB68RTA is a low-power, wide-bandwidth, 16-bit, 500MSPS analog-to-digital converter (ADC). The buffered analog input provides a unified input impedance over a wide frequency range while minimizing the energy of sampling-holding glitch pulses to the greatest extent. This device is designed to sample input signals up to 1.3GHz.

Technical Specification

Resolution: 16 bits

Number of channels: 1 Channel

Interface type: JESD204B

Sampling ratio: 500 MS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.2V, 1.8V, 3V

Digital power supply voltage: 1.2V, 1.8V, 3V

SNR - Signal-to-Noise Ratio: 70.6 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

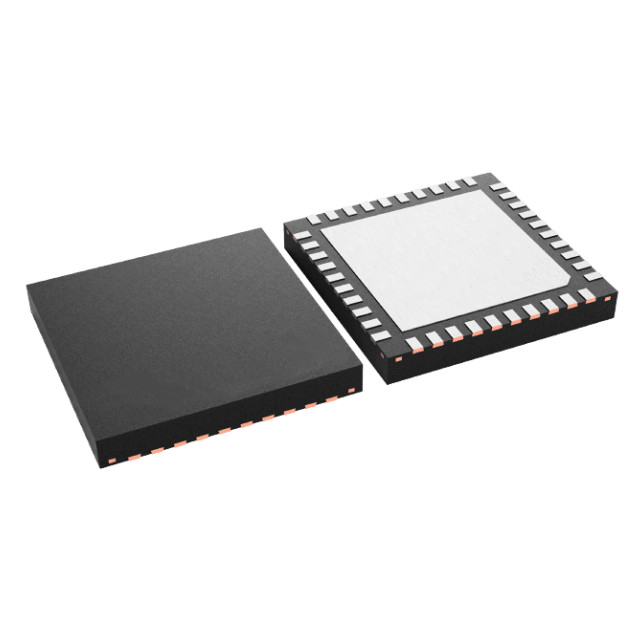

Package/Box: WQFN-40

In addition, the ADC31JB68RTA also supports the JESD204B serial interface, with data rates of both channels reaching up to 5Gbps, thereby achieving high system integration density.

Typical applications

• High Intermediate frequency (IF) sampling receiver

• Wireless broadband

• Microwave receiver

• Cable CMTS, DOCSIS 3.1 receiver

• Communication test equipment

• Digital converter

• Software Defined Radio (SDR)

• Radar and antenna arrays
