The ADC14X250RHBR device is a 14-bit, 250MSPS analog-to-digital converter (ADC). This converter adopts a differential pipeline architecture and integrates an input buffer, featuring outstanding dynamic performance and low power consumption throughout the entire extended temperature range from -40 °C to 105°C (measured at the heat dissipation pads of the device's printed circuit board (PCB)).

The ADC14X250RHBR mainly has the following functions:

• Resolution: 14 bits

• Conversion rate: 250MSPS

• Performance:

- Input: 240MHz, -3 DBFS

-Signal-to-noise Ratio (SNR) : 70.1dBFS

-Noise spectral density: -151.1dBFS/Hz

-Spurious dynamic range (SFDR) : 87dBFS

- Non-HD2 and non-HD3 burrs: -92 DBFS

- No input SNR: 71.1dBFS

• Power consumption: 584mW

• Rated temperature up to 105°C (at the heat dissipation pad)

The JESD204B is a subclass 1 single-channel serial data interface with a channel rate up to 5Gb/s

Buffered analog input

Differential input phase and amplitude correction

Input sampling clock divider (1, 2, 4, 8)

4-wire serial peripheral interface (SPI)

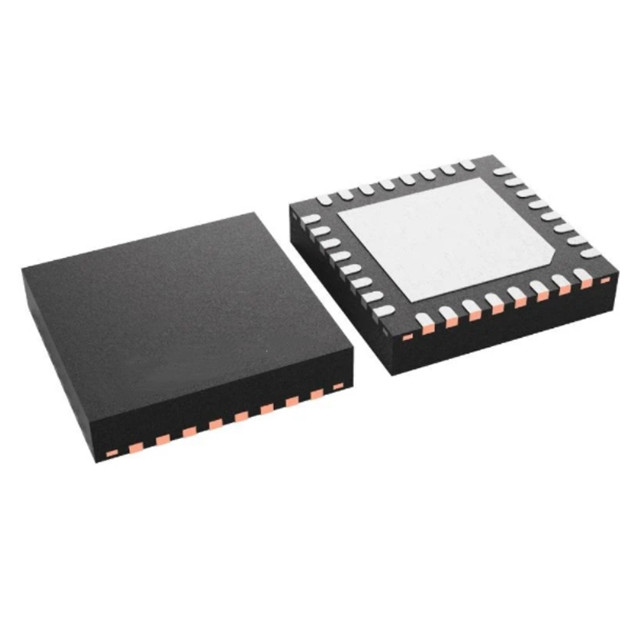

32-pin ultra-thin square flat leadless (WQFN) package (5mm×5mm, 0.5mm pitch)

In addition, the ADC14X250RHBR is suitable for applications that require high sampling rates and high resolution, such as high-speed data acquisition, communication systems, test and measurement equipment, etc. ‌. Its low power consumption and excellent dynamic performance make it perform well in demanding systems.
