The ADC32RF45IRMP device is a 14-bit 3.0GSPS dual-channel analog-to-digital converter (ADC) that supports RF sampling with input frequencies up to 4GHz and above. The ADC32RF45IRMP is designed to achieve a high signal-to-noise ratio (SNR), featuring a noise spectral density of -155 DBFS /Hz and a dynamic range over a wide input frequency range, and it also provides channel isolation. The buffered analog input is equipped with a resistor at the top of the chip, which can provide a unified input impedance over a wide frequency range and minimize the sampling and holding of glitch pulse energy to the greatest extent.

Performance parameters

Resolution: 14 bits

Number of channels: 2 channels

Interface type: Serial

Sampling ratio: 3 GS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.15V, 1.9V

Digital power supply voltage: 1.15V

SNR - Signal-to-Noise Ratio: 54.2 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

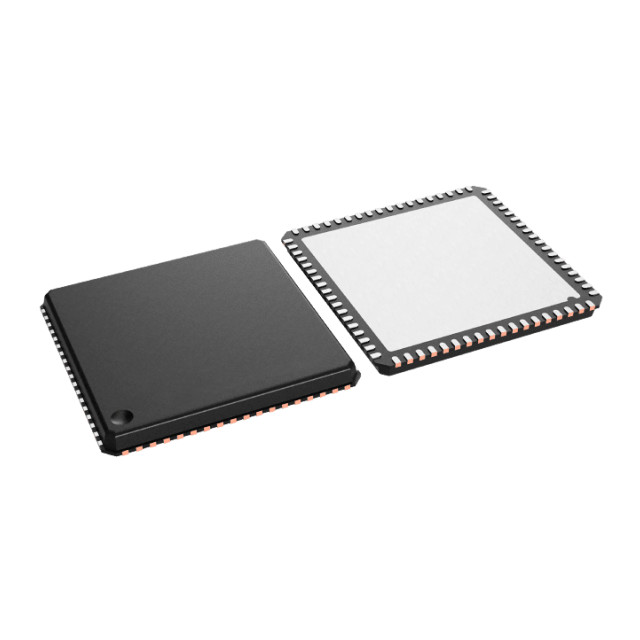

Package/Box: VQFN-72

In addition, the ADC32RF45IRMP is widely applied in the following fields:

Multi-band, multi-mode 2G, 3G and 4G cellular receivers

Phased array radar

Electronic Countermeasures

Cable infrastructure

Wireless broadband

High-speed digital converter

Software-defined radio

Communication test equipment

Microwave and millimeter-wave receivers
