The DAC8163SQDGSRQ1 device is a dual-channel 14-bit ultra-low burr pulse low-power buffer voltage output DAC for automobiles produced by (TI). Its main specifications include:

Digit number: 14

Digital-to-analog converter number: 2

Establishment time: 10µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±1, ±0.1

Architecture: Resistor series DAC

Operating temperature: -40°C to 125°C

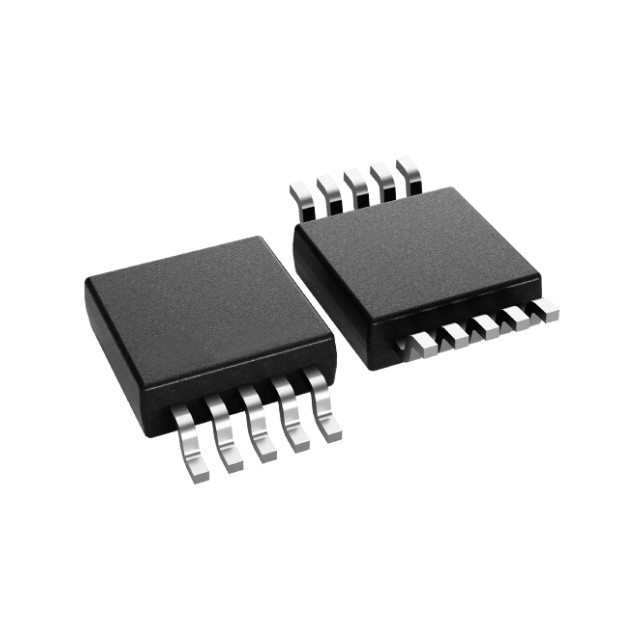

Encapsulation/Shell: 10-VSSOP

Installation type: Surface mount type

Grade: Automotive grade

Qualification: AEC-Q100

The DAC8163SQDGSRQ1 device features an internal reference of 2.5V, 4ppm/°C, thereby providing a full-scale output voltage range of 2.5V or 5V. This internal reference has an initial accuracy of ±5mV and is capable of providing or absorbing up to 20mA of current on the VREFIN/VREFOUT pin.

Application field

The DAC8163SQDGSRQ1 is widely applied in the following fields, including:

Portable instrument

Programmable Logic Controller (PLC) analog output module

Closed-loop server control

Tuning of the voltage-controlled oscillator

Data acquisition system

Programmable gain and offset adjustment
