The DAC7563SQDGSRQ1 is a dual-channel 12-bit ultra-low glitch pulse low-power buffer voltage output DAC. This device includes an internal reference of 2.5V, 4ppm/°C, thereby providing a full-scale output voltage range of 2.5V or 5V. The DAC7563SQDGSRQ1 device is powered on at the midpoint of its range. This DAC device also features a power-off characteristic, which can reduce the current loss at a voltage of 5V to 550nA (typical value). This low power consumption, internal reference and small package size make the DAC7563SQDGSRQ1 highly suitable for portable, battery-powered operation devices.

Application field

Portable instrument

Programmable Logic Controller (PLC) analog output module

Closed-loop server control

Tuning of the voltage-controlled oscillator

Data acquisition system

Programmable gain and offset adjustment

In addition, the DAC7563SQDGSRQ1 also features the following key specifications:

Digit number: 12

Digital-to-analog converter number: 2

Establishment time: 10µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±0.3, ±0.05

Architecture: Resistor series DAC

Grade: Automotive grade

Qualification: AEC-Q100

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

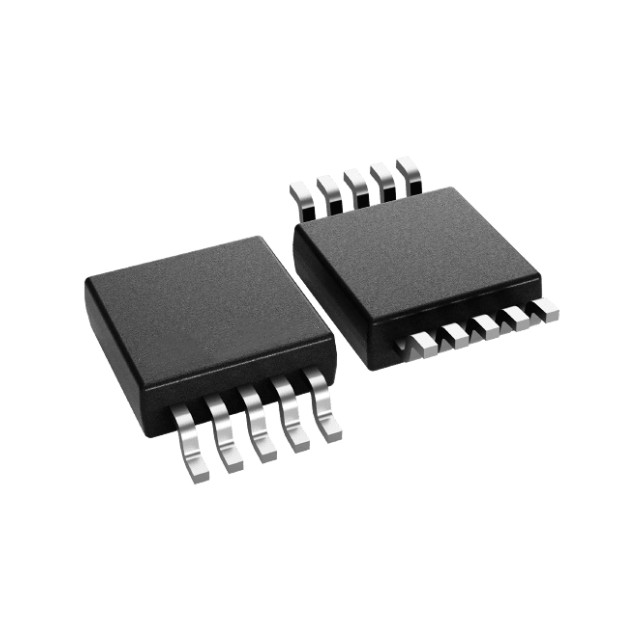

Encapsulation/Shell: 10-VSSOP
