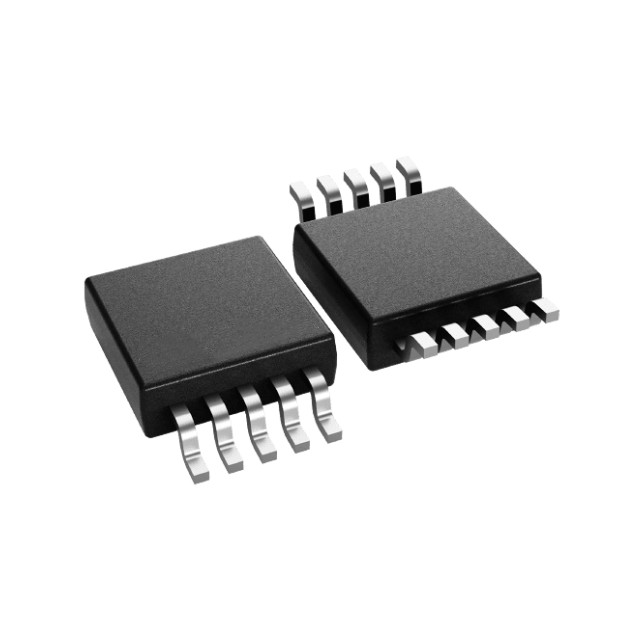

The DAC104S085QIMMX device is a fully functional general-purpose QUAD 10-bit voltage output digital-to-analog converter (DAC) that can be powered by a single supply ranging from 2.7V to 5.5V. Its power consumption is 1.1mW at 3V and 2.5mW at 5V. This device has the following main parameters:

Digit number: 10

Digital-to-analog converter number: 4

Establishment time: 6µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference type: External

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±0.7, +0.08/-0.03

Architecture: Resistor series DAC

Grade: Automotive grade

Qualification: AEC-Q100

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Encapsulation/Shell: 10-VSSOP

The applications of DAC104S085QIMMX include

Battery-powered instruments

Digital gain and offset adjustment

Programmable voltage and current sources

Programmable attenuator

"Automobile"
