The DAC8218SRGZR is a low-power, eight-channel, 14-bit digital-to-analog converter (DAC). When a 5V reference is adopted, the output can be a bipolar ±15V voltage (when powered by a dual ±15.5V (or higher) power supply) or a unipolar 0V to 30V voltage (when powered by a 30.5V (or higher) power supply). When using the 5.5V reference, the output can be a bipolar ±16.5V voltage (when powered by dual ±17V (or higher) power supplies), and the output can be a unipolar 0V to 33V voltage (when powered by 33.5V (or higher) power supplies).

Main parameters

Digit number: 14

Digital-to-analog converter number: 8

Establishment time: 15µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, simulation: ±4.5V to 18V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

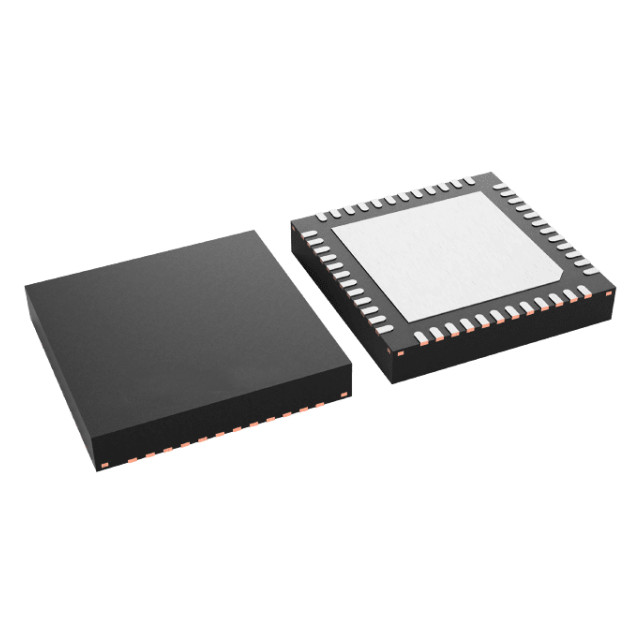

Package/Shell: 48-VFQFN

Typical applications

Automatic testing equipment

PLC and industrial process control

Communication
