The DAC7718SRGZR is a low-power, eight-channel, 12-bit digital-to-analog converter (DAC). The DAC7718SRGZR features a standard high-speed serial peripheral interface (SPI), operates at a frequency of up to 50MHz, is compatible with 1.8V, 3V and 5V logic, and can communicate with DSP or microprocessor. The input data of this device is double-buffered. The asynchronous load input (LDAC) transfers data from the DAC data register to the DAC latch. Asynchronous CLR input sets the output of all 8 Dacs to AGND.

Main parameters

Digit number: 12

Digital-to-analog converter number: 8

Establishment time: 15µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, simulation: ±4.5V to 18V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 105°C

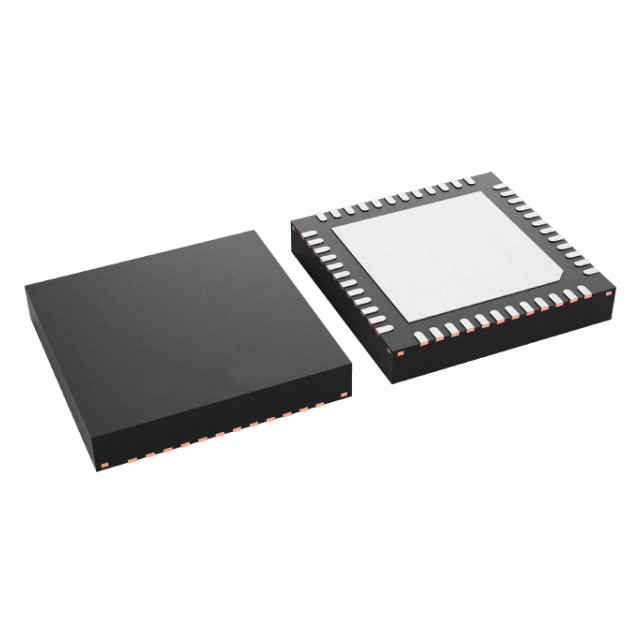

Package/Shell: 48-VFQFN

Application field

The DAC7718SRGZR is suitable for a variety of application scenarios, including:

Automatic test equipment ‌

Programmable Logic Controller (PLC) ‌

Industrial process control ‌

Communication equipment ‌‌
