The DAC60004IPWR is a 12-bit, four-channel, low power, voltage output digital-to-analog converter ‌. This device is designed to ensure monotonicity and has an excellent linearity of less than 1 LSB (maximum value). The reference input of the DAC is buffered internally through a dedicated reference buffer.

The DAC60004IPWR device is equipped with a power-on reset circuit to ensure that the DAC output is powered on at the zero range or the midpoint of the range (depending on the state of the POR pin) and remains in this state until a valid code is written into the device. Its current consumption is very low (1mA/ channel), making it an ideal choice for portable and battery-powered devices. The DAC60004IPWR device also features a power-off characteristic.

Technical Specification

Digit number: 12

Digital-to-analog converter number: 4

Establishment time: 8µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference type: External

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 125°C

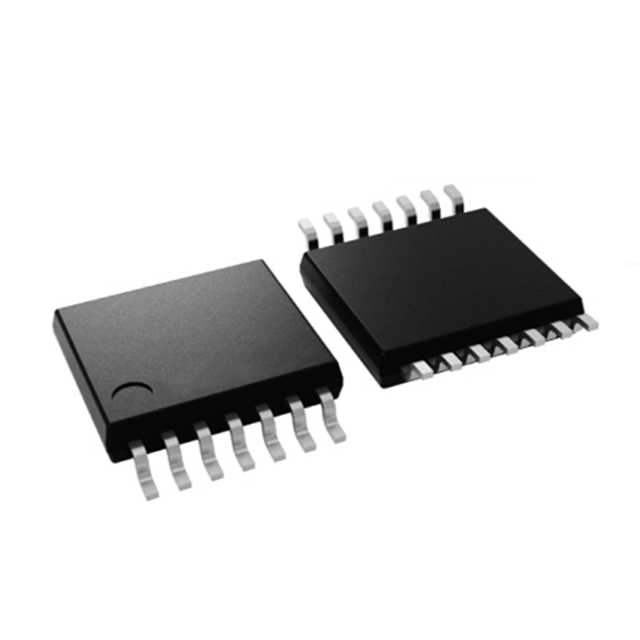

Package/Shell: 14-TSSOP

Application scenarios

Portable instrument

Programmable logic controller (PLC) analog output module (4MA - 20mA)

Closed-loop server control

• Data acquisition system
