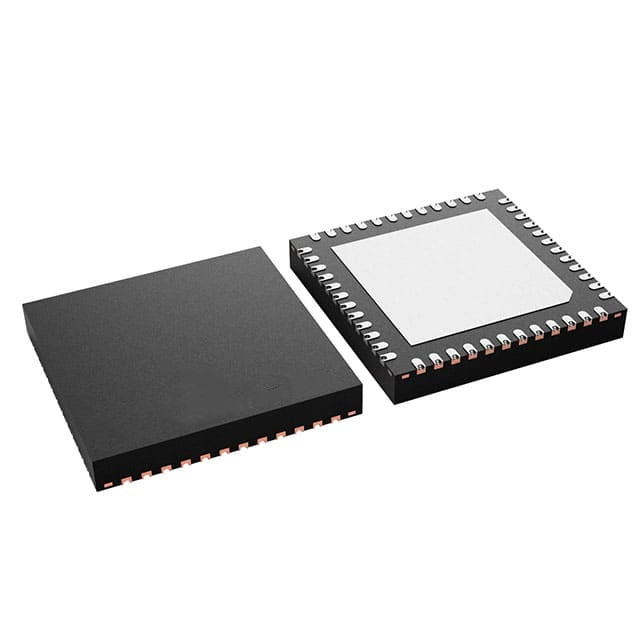

The DAC8771RGZR is a single-channel precision fully integrated 16-bit digital-to-analog converter (DAC) with adaptive power management capabilities, suitable for industrial control applications. Its adaptive power management circuit can minimize the power consumption of the chip to the greatest extent after being enabled. The DAC8771RGZR features an LDO for generating a digital power supply (5V) from a single power pin, making it particularly suitable for applications that support isolation.

The DAC8771RGZR has the following key parameters:

Number of digits: 16

Digital-to-analog converter number: 1

Establishment time: 30µs

Output type: Voltage or Current-Buffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, analog: 12V to 36V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±10 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 125°C

Package/Shell: 48-VFQFN

Typical applications

Current loop from 4mA to 20mA

• Analog output module

Programmable Logic Controller (PLC)

"Building Automation"
